Description
Brand - KAYDON
Item Number - MTO-143 KAYDON
Category - Slewing Ring Bearing (MT Series with No Gear)

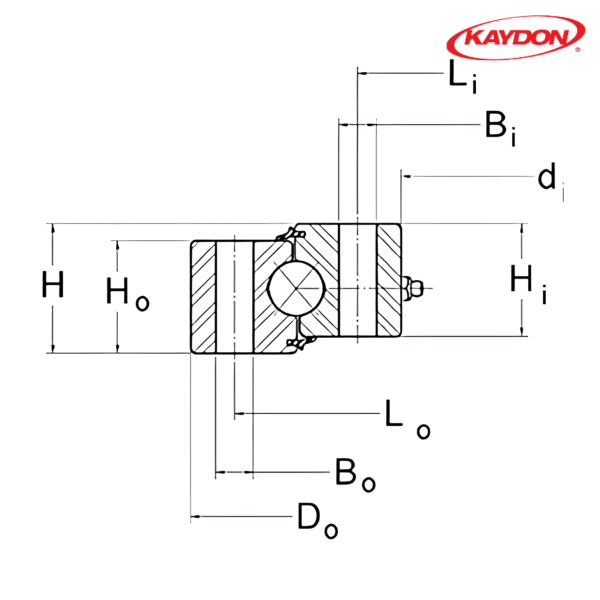

Outline Dimension (Do) inch - 9.803
Outline Dimension (di) inch - 5.63
Outline Dimension (H) inch - 1.339
Outline Dimension (Hi/Ho) inch - 1.142
Weight (G) kg - 6.80388
Mounting Holes Outer Ring (Lo) inch - 8.937
Mounting Holes Outer Ring (no) - 12
Mounting Holes Inner Ring (Li) inch - 6.496
Mounting Holes Inner Ring (ni) - 12
Moment Rating (Crm) ft-lbs - 8950

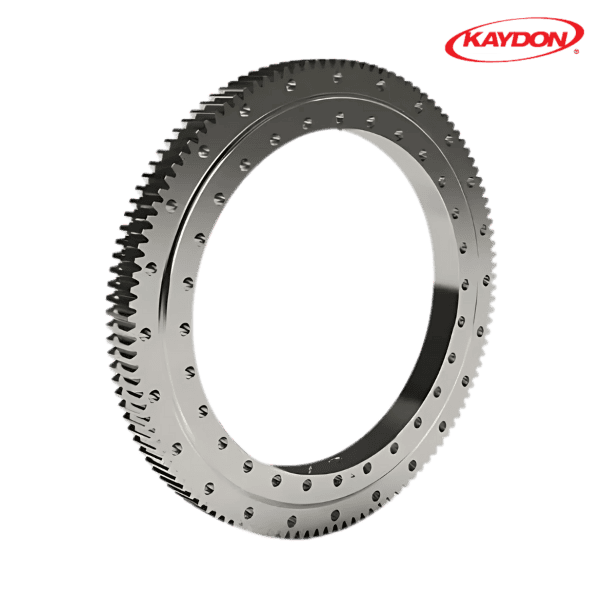

** Images are for representation purposes only
