MTO-122T KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - MTO-122T KAYDON
Category - Slewing Ring Bearing (MT Series with No Gear)

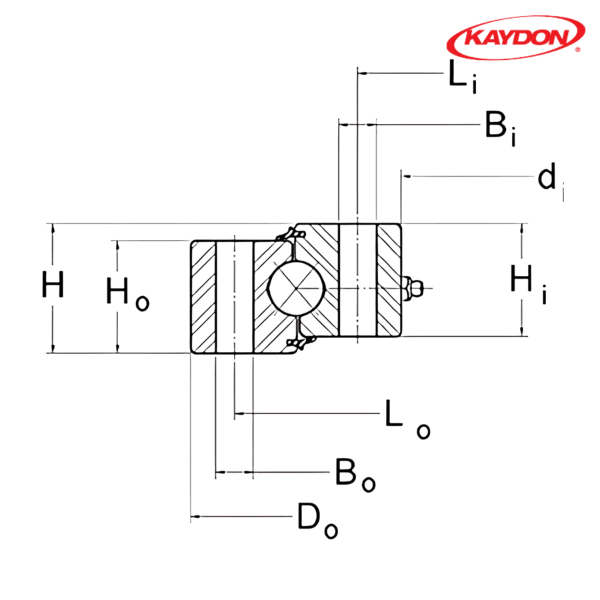

Outline Dimension (Do) inch - 8.898
Outline Dimension (di) inch - 4.803
Outline Dimension (H) inch - 1.339
Outline Dimension (Hi/Ho) inch - 1.142
Weight (G) kg - 5.896696
Mounting Holes Outer Ring (Lo) inch - 8.189
Mounting Holes Outer Ring (no) - 12
Mounting Holes Inner Ring (Li) inch - 5.512
Mounting Holes Inner Ring (ni) - 12
Moment Rating (Crm) ft-lbs - 5020

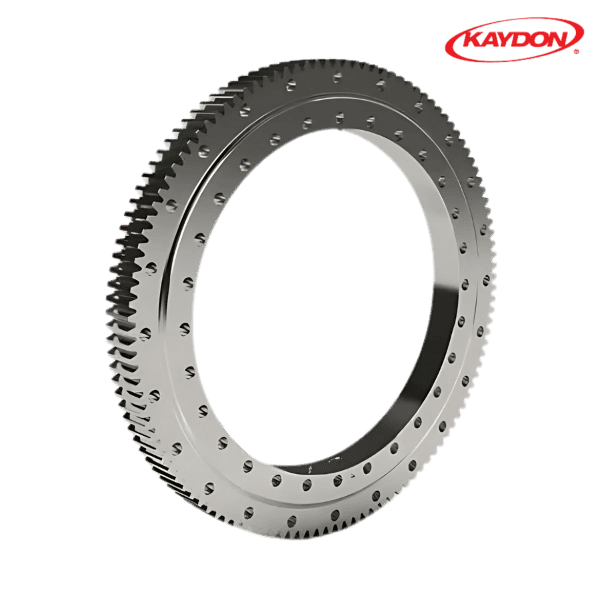

** Images are for representation purposes only
