MTE-730T KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - MTE-730T KAYDON

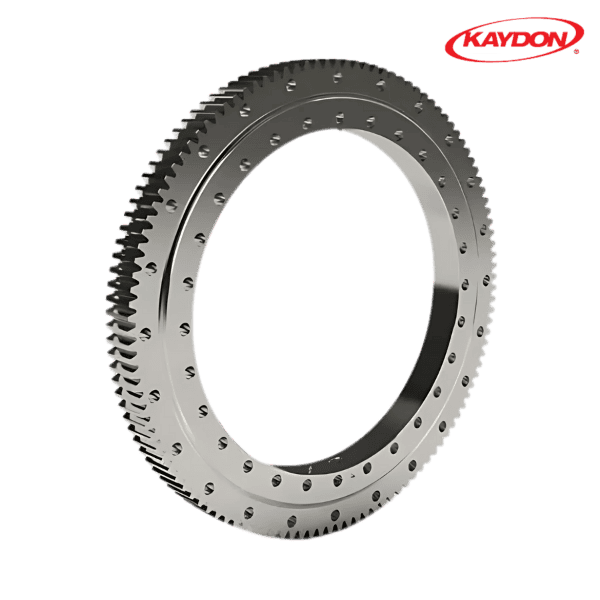

Category - Slewing Ring Bearing (MT Series with External Gear)

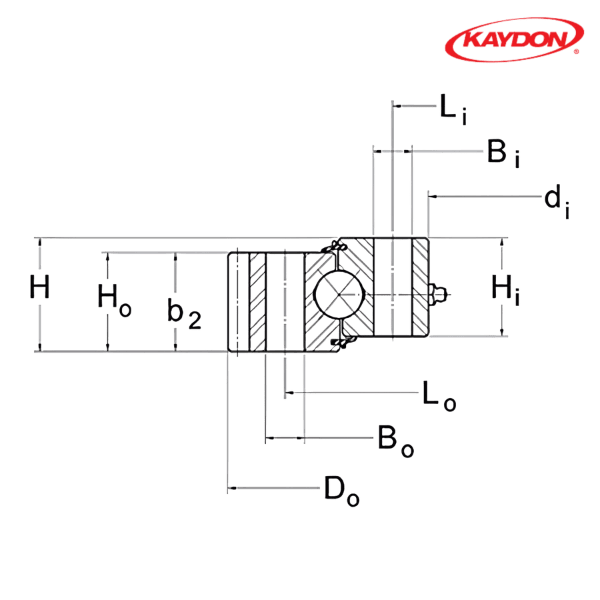

Outline Dimension (Do) inch - 41.85
Outline Dimension (di) inch - 28.75
Outline Dimension (H) inch - 3.25
Outline Dimension (Hi/Ho) inch - 2.88
Weight (G) kg - 222.713672
Mounting Holes Outer Ring (Lo) inch - 38
Mounting Holes Outer Ring (no) - 20
Mounting Holes Inner Ring (Li) inch - 31
Mounting Holes Inner Ring (ni) - 24
Gear Data Tooth Form - SD
Gear Data (D2) inch - 41.2
Gear Data (Pd) - 2.5
Gear Data (z2) - 103
Gear Data (b2) inch - 2.63
Maximum Gear Tooth Load (Fz) lbs - 21290
Moment Rating (Crm) ft-lbs - 588000

** Images are for representation purposes only
