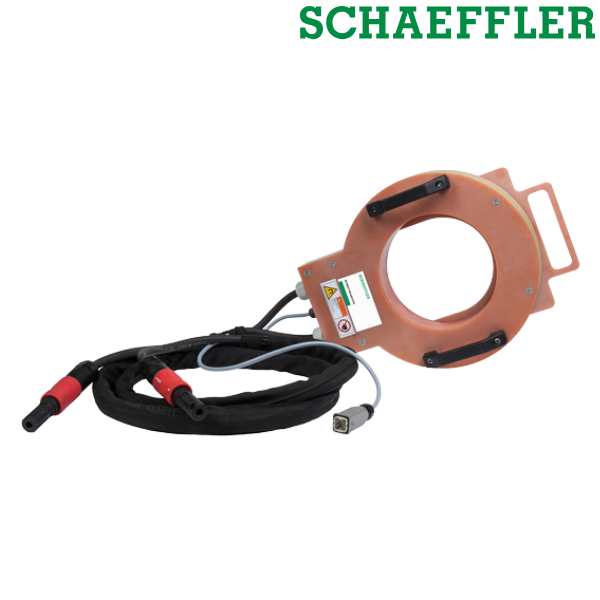

Description
| Technical data |
|
Bore Diameter Inductor (d)
|
150 mm
|
| Clear Width Inductor, Inside (Wi) |
65 mm
|
| For Generators with Power, Maximum (Pmax) |
22 kW
|
| Recommended Power Setting (Prec) |
4 kW
|
| Maximum Permitted Heating Temperature (ϑmax) |
180 °C
|
| Temperature Guarded winding |
+
|
| Weight (≈m) |
15 kg
|
| Additional information |
| Usability | For labyrinth rings in cylindrical roller bearing units |
| Application & Function |
| Function | The inductor is the component responsible for generating the electromagnetic field that heats the workpiece. It connects to the generator and is placed directly on or around the component |
| Flexibility | "Flexible Inductors" are cables that can be wrapped around workpieces of varying geometries and sizes, making them highly versatile for different maintenance tasks |
| Applications | Suitable for heating bearings, inner rings, housings, couplings, labyrinth rings, and gear wheels |
