Description
| Technical data |
|
Bore Diameter Inductor (d)
|
195 mm
|
|
Clear Width Inductor, Inside (Wi)
|
212 mm
|
| For Generators with Power, Maximum (Pmax) |
22 kW
|
| Recommended Power Setting (Prec) |
20 kW
|
| Maximum Permitted Heating Temperature (ϑmax) |
150 °C
|
| Temperature Guarded Winding |
by thermal switch
|
| Weight (≈m) |
21 kg
|
| Workpiece to be heated |
|
Suitable for Bearing Type
|
FAG Z-507344.ZL
|
| Dimensions Inner Ring [dxFxW] (mm) |
150x193x212
|
| Application & Function |

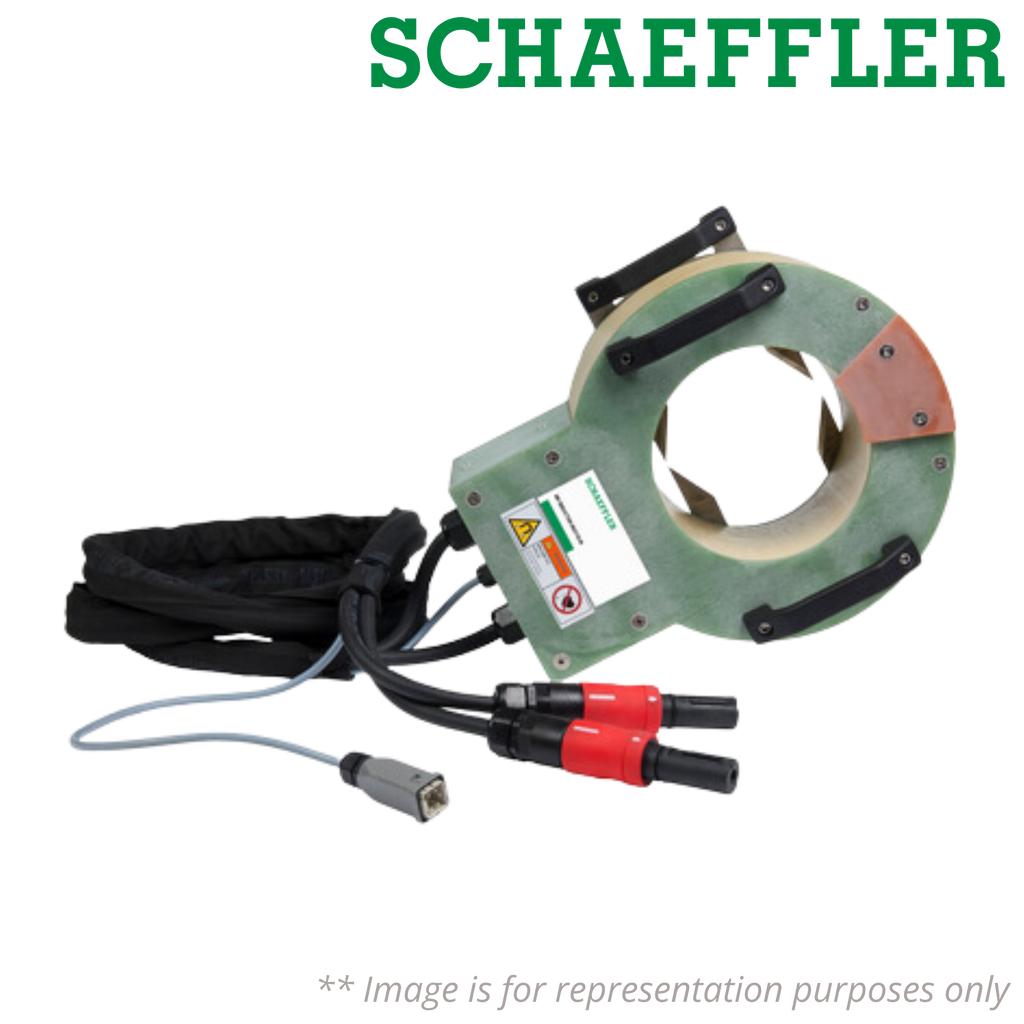

| Function | The inductor is the component responsible for generating the electromagnetic field that heats the workpiece. It connects to the generator and is placed directly on or around the component |
| Flexibility | "Flexible Inductors" are cables that can be wrapped around workpieces of varying geometries and sizes, making them highly versatile for different maintenance tasks |
| Applications | Suitable for heating bearings, inner rings, housings, couplings, labyrinth rings, and gear wheels |
