Description
| Technical data |
| Bore Diameter Inductor (d) |
171.5 mm
|
| Clear Width Inductor, Inside (Wi) |
150 mm
|
| For Generators with Power, Maximum (Pmax) |
22 kW
|
| Recommended Power Setting (Prec) |
15 kW
|
| Maximum Permitted Heating Temperature (ϑmax) |
150 °C
|
| Temperature Guarded Winding |
by thermal switch
|
| Weight (≈m) |
15 kg
|
| Workpiece to be heated |
| Suitable for Bearing Type |
FAG WJ/WJP120x240, WJ/WJP130x240
|
| Dimensions Inner Ring [dxFxW] (mm) |
120x150x80+64.5; 130x157x80+64.5; 130x159x80+64.5
|
| Application & Function |

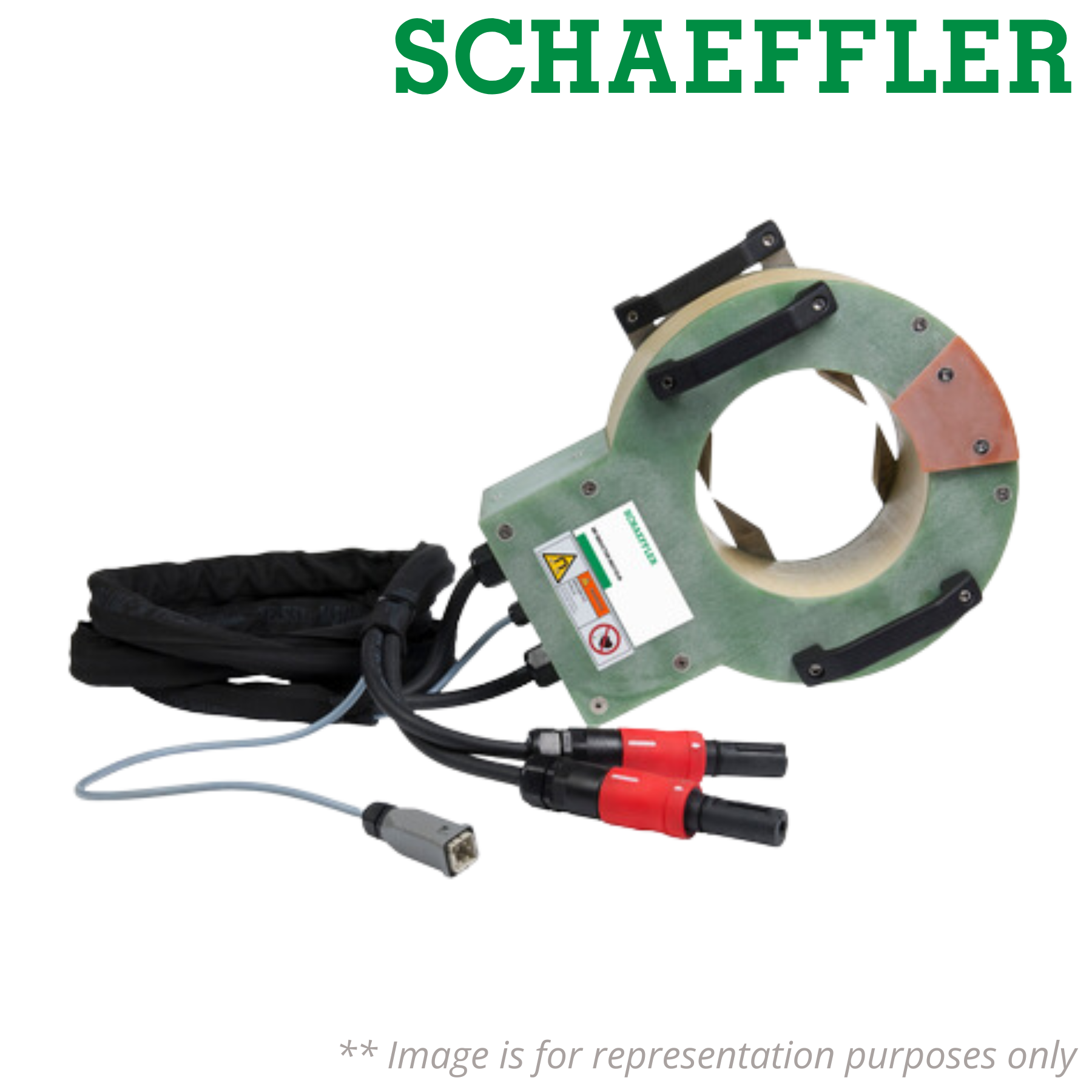

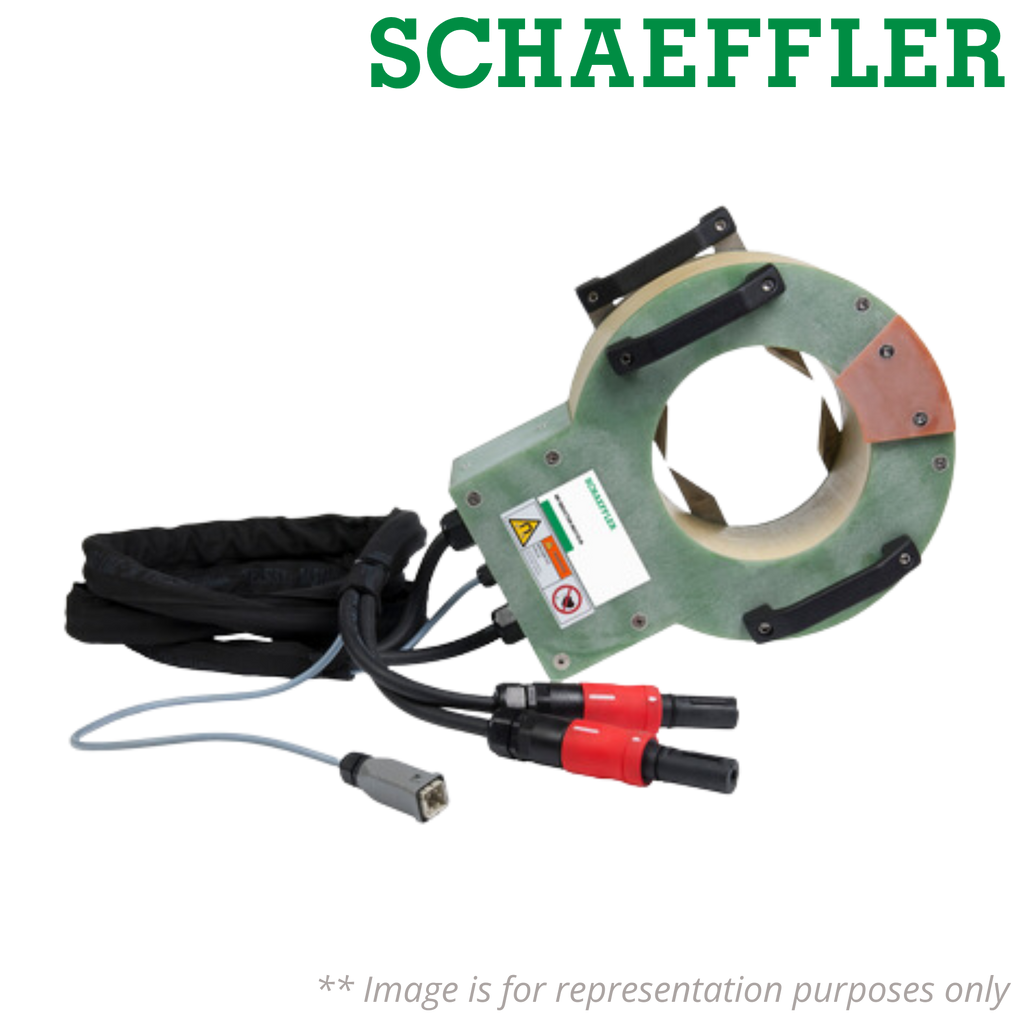

| Function | The inductor is the component responsible for generating the electromagnetic field that heats the workpiece. It connects to the generator and is placed directly on or around the component |
| Flexibility | "Flexible Inductors" are cables that can be wrapped around workpieces of varying geometries and sizes, making them highly versatile for different maintenance tasks |
| Applications | Suitable for heating bearings, inner rings, housings, couplings, labyrinth rings, and gear wheels |
