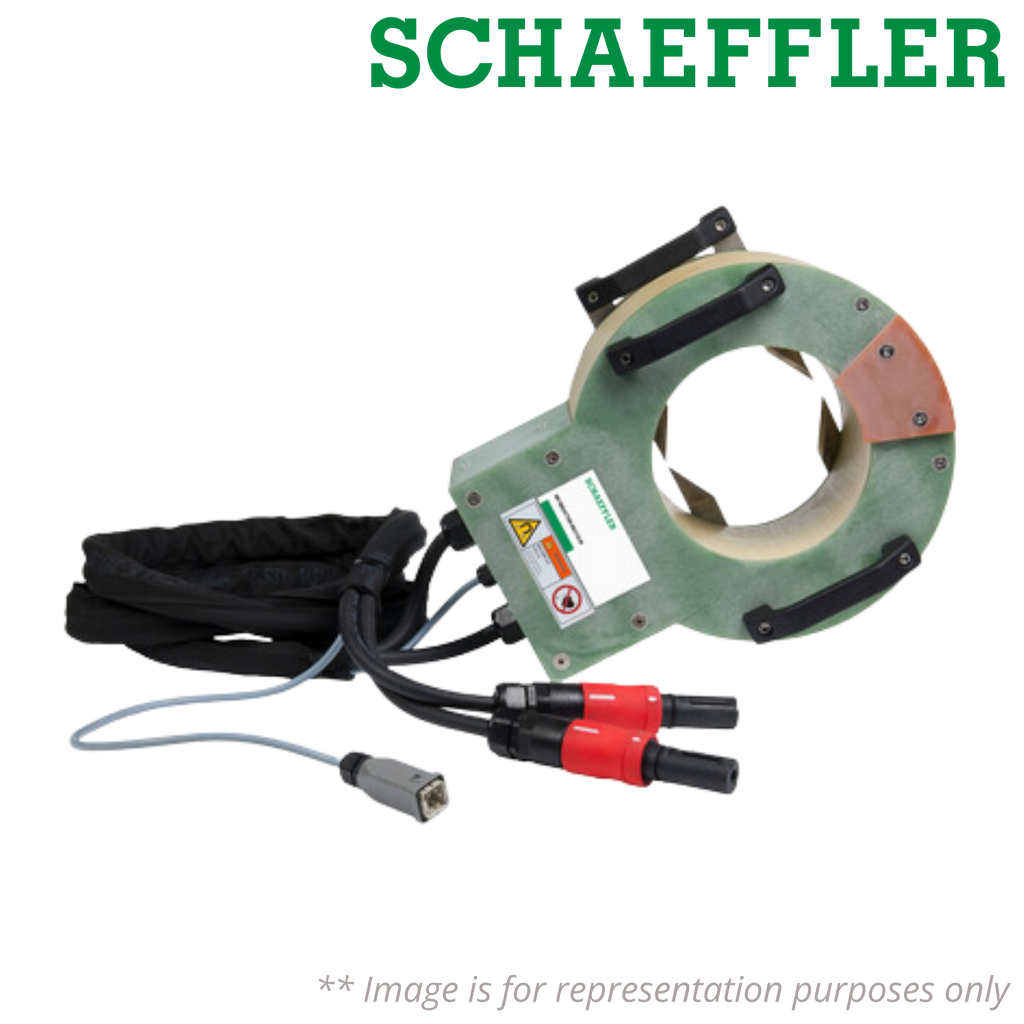

Description
| Technical data |
| Bore Diameter Inductor (d) |
142 mm
|
| Clear Width Inductor, Inside (Wi) |
81 mm
|
| For Generators with Power, Maximum (Pmax) |
22 kW
|
| Recommended Power Setting (Prec) |
10 kW
|
| Maximum Permitted Heating Temperature (ϑmax) |
150 °C
|
| Temperature Guarded Winding |
+
|
| Weight (≈m) |
15 kg
|
| Workpiece to be heated |
| Suitable for Bearing Type | FAG F-578004.03.AMG120-Z-A/B, F-672729 |
| Dimensions Inner Ring [dxFxW] (mm) | 120x134x80.5 |
| Application & Function |
| Function | The inductor is the component responsible for generating the electromagnetic field that heats the workpiece. It connects to the generator and is placed directly on or around the component |
| Flexibility | "Flexible Inductors" are cables that can be wrapped around workpieces of varying geometries and sizes, making them highly versatile for different maintenance tasks |
| Applications | Suitable for heating bearings, inner rings, housings, couplings, labyrinth rings, and gear wheels |
