Description
| Technical data |
| Bore Diameter Inductor (d) |
116 mm
|
| Clear Width Inductor, Inside (Wi) |
117 mm
|
|
For Generators with Power, Maximum (Pmax)
|
22 kW
|
|
Recommended Power Setting (Prec)
|
10 kW
|
|
Maximum Permitted Heating Temperature (ϑmax)
|
150 °C
|
| Temperature Guarded Winding |
+
|
|
Weight (≈m)
|
16 kg
|
| Workpiece to be heated |
| Suitable for Bearing Type | FAG Z-175254, Z-172676 |
| Dimensions Inner Ring [dxFxW] (mm) |
90x107x116.3+6.0+92.5
|
| Application & Function |

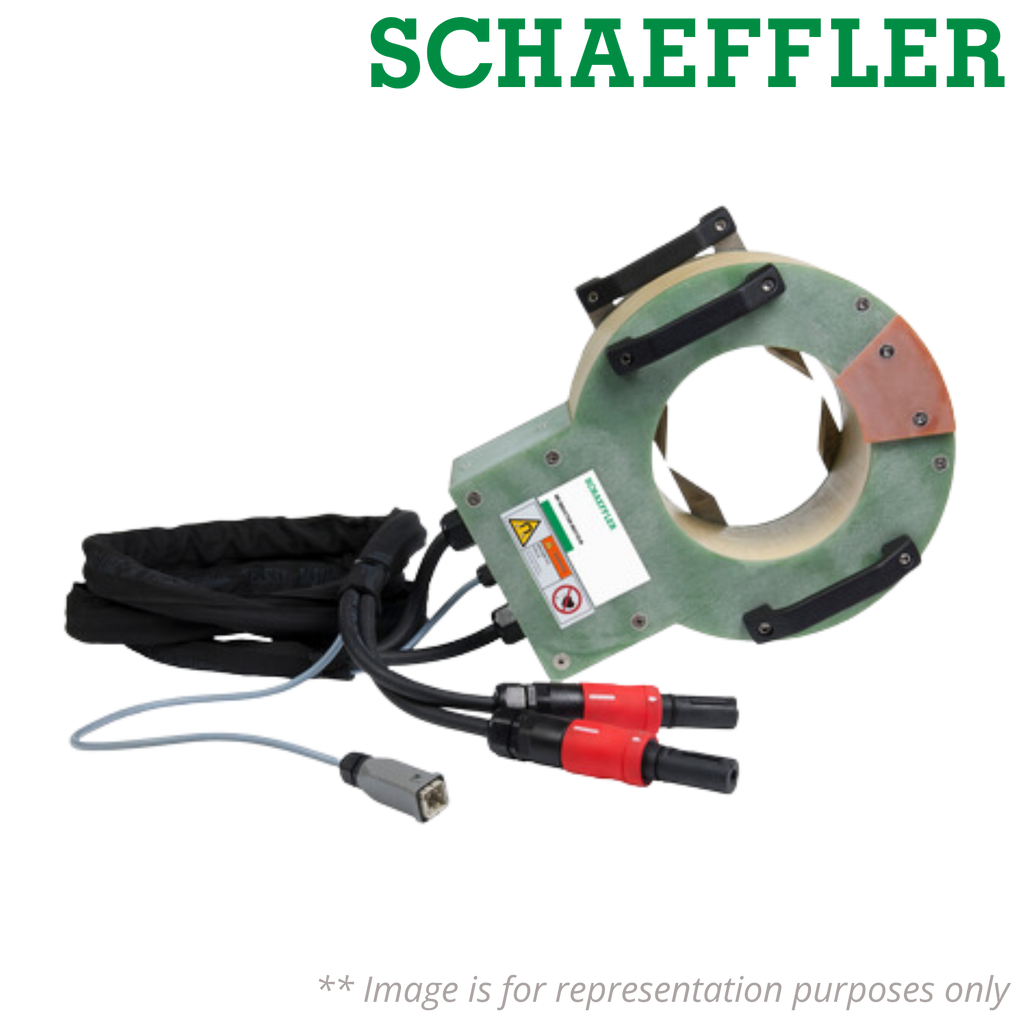

| Function | The inductor is the component responsible for generating the electromagnetic field that heats the workpiece. It connects to the generator and is placed directly on or around the component |
| Flexibility | "Flexible Inductors" are cables that can be wrapped around workpieces of varying geometries and sizes, making them highly versatile for different maintenance tasks |
| Applications | Suitable for heating bearings, inner rings, housings, couplings, labyrinth rings, and gear wheels |
