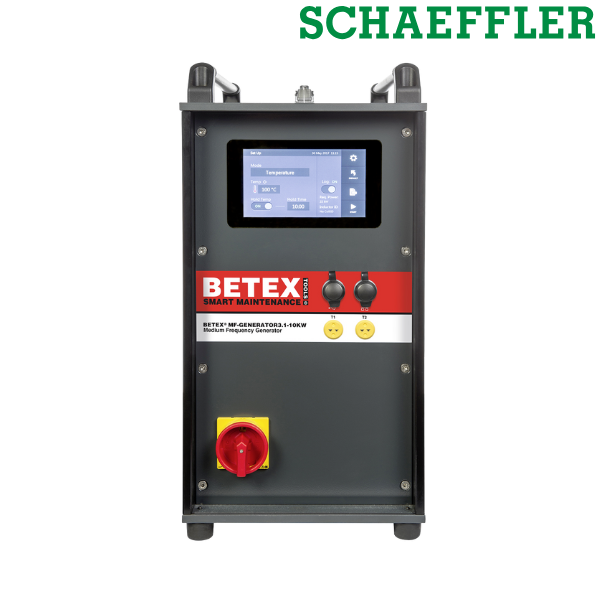

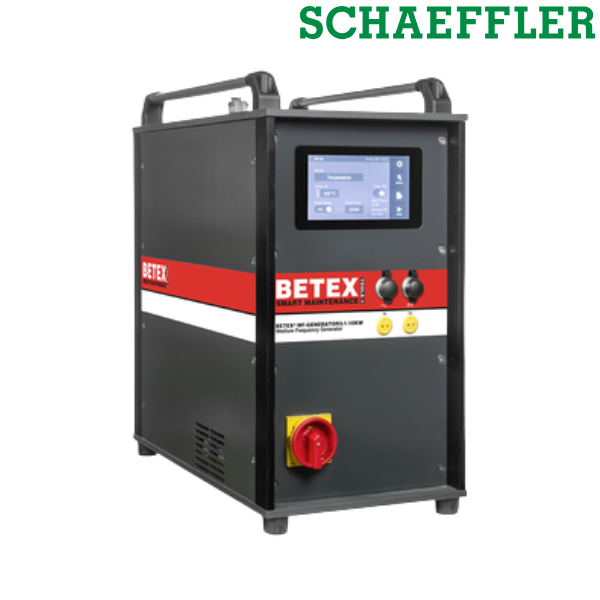

Description
| Technical data |
| Maximum Power | 10 kW |
| Output Frequency | 10 - 25 kHz |
| Mains Voltage | 450 V |
| Mains Frequency | 50 - 60 Hz |
| Mains Phases | 3+PE |
| Power Plug | CEE-516P6W/ without plug/ CEE-520P7W |
| Cable Length | 5000 mm |
| Weight | 46 kg |
| Dimensions (L x W x H) | 600 x 300 x 600 mm |
| Certification | CE |
| Functions |
| 3.5-inch Touchscreen | Yes |
| 4.3-inch Touchscreen | Yes |
| Advanced Features |
| Modes |
Heating and Cooling according to preset temperature-time curves.
|
| Sequence Control |
5 freely adjustable program steps for complex heating specifications.
|
| Connectivity |
USB interface for data export and documentation; LAN interface for "Leader-Follower" operation (connecting up to 10 generators).
|
| Display | Larger 7-inch touchscreen. |
| Dual Measurement | Delta T control (measurement of 2 points). |
| Applications |
| Target Components |
Suitable for mounting and dismounting bearings, inner rings, housings, labyrinth rings, couplings, and gear wheels.
|
| Heavy Industry |
Capable of heating very large or heavy workpieces, such as main bearings and wind turbine housings.
|
| Sector Use |
Ideal for maintenance in industrial environments, specifically for replacing drive components.
|
| Versatility |
Can be used with flexible or fixed inductors depending on the geometry of the workpiece.
|
| Benefits |
| Efficiency |
Heats faster and is more energy-efficient than conventional methods (furnaces, oil baths, gas burners).
|
| Safety |
Temperature-controlled heating prevents overheating damage; automatic reduction of residual magnetism improves operational reliability.
|
| Preservation |
Contact-free heating maintains original bearing lubrication and prevents damage, increasing service life.
|
| Cooling Control |
Allows for controlled cooling according to a preset temperature-time curve to meet strict material specifications.
|
