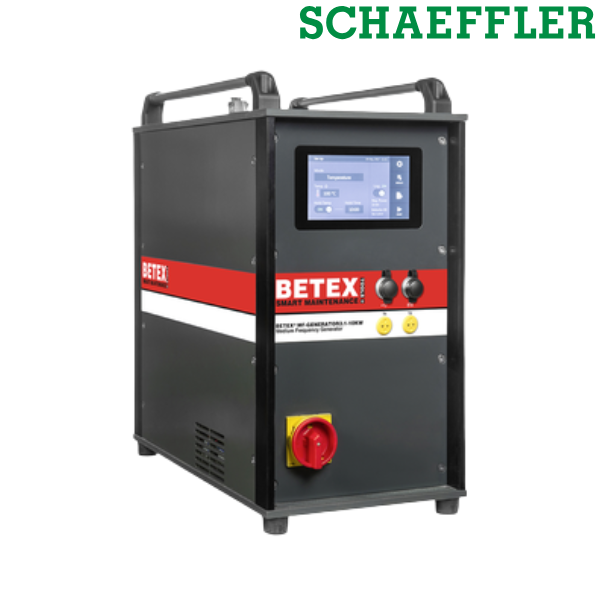

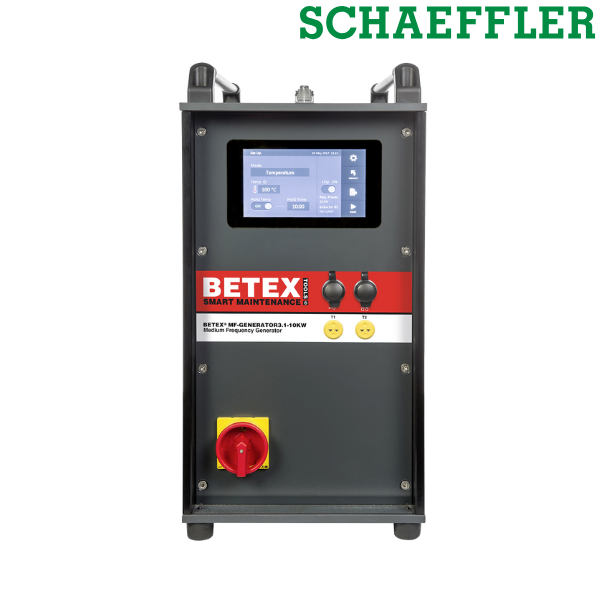

Description
| Technical data |
| Maximum Power | 10 kW |
| Output Frequency | 10 - 25 kHz |
| Mains Voltage | 400 V |
| Mains Frequency | 50 - 60 Hz |
| Mains Phases | 3+PE |
| Power Plug | CEE-516P6W/ without plug/ CEE-520P7W |
| Cable Length | 5000 mm |
| Weight | 46 kg |
| Dimensions (L x W x H) | 600 x 300 x 600 mm |
| Certification | CE |
| Functions |
| 3.5-inch Touchscreen | Yes |
| 4.3-inch Touchscreen | Yes |
| Advanced Features |
| Modes |
Heating and Cooling according to preset temperature-time curves. |
| Sequence Control | 5 freely adjustable program steps for complex heating specifications. |
| Connectivity | USB interface for data export and documentation; LAN interface for "Leader-Follower" operation (connecting up to 10 generators). |
| Display | Larger 7-inch touchscreen. |
| Dual Measurement | Delta T control (measurement of 2 points). |
| Applications |
| Target Components | Suitable for mounting and dismounting bearings, inner rings, housings, labyrinth rings, couplings, and gear wheels. |
| Heavy Industry | Capable of heating very large or heavy workpieces, such as main bearings and wind turbine housings. |
| Sector Use | Ideal for maintenance in industrial environments, specifically for replacing drive components. |
| Versatility | Can be used with flexible or fixed inductors depending on the geometry of the workpiece. |
| Benefits |
| Efficiency | Heats faster and is more energy-efficient than conventional methods (furnaces, oil baths, gas burners). |
| Safety | Temperature-controlled heating prevents overheating damage; automatic reduction of residual magnetism improves operational reliability. |
| Preservation | Contact-free heating maintains original bearing lubrication and prevents damage, increasing service life. |
| Cooling Control | Allows for controlled cooling according to a preset temperature-time curve to meet strict material specifications. |
