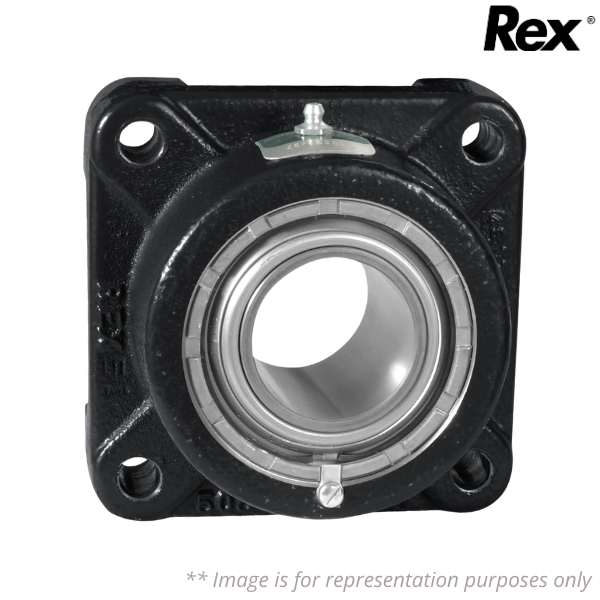

MEF2307H4382 REX

Brand - REX
Item Number - MEF2307H4382 REX
Category - Flange Blocks Spherical Roller Bearing
UPC - 793699692563
Material - 10428842
Model - ZEF2000
Bore Size (in) - 3.4375 in
Clearance - C3 STANDARD
Fixed vs. Expansion - Fixed
Housing Construction - Solid
Housing Material - Cast Iron
Housing Style - Flange Block
Housing Type - Flange, Four Bolt
Locking Type - Single Set Collar
Retainer Material - Engineered Polymer
Seal Type - Heavy Contact Seal
Available End Cap - DTC10
Available Seal Type - K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Bearing Brand - REX ROLLER BEARING
Bolt Circle Radius (in) - 4 61/64 in
Bolt Size (in) - 3.4375 in
Bore Length (in) - 4 3/8 in
Distance Between Bolt Holes (in) - 7 in
Distance from Housing Cast Face to Inner Ring Long Hub Face (in) - 15/16 in
Grease Fitting Thread Size - 1/8 NPT
Height - 6.25
Housing Coating - POWDER COATED
Housing Width (in) - 9 1/4 in
Inner Ring Hub Diameter (in) - 3 31/32 in
Insert - 2307U82
Length - 9.69
Locking Collar Outside Diameter (in) - 4 29/32 in
Locking Device Kit - SC10
Lubrication Type - MOBIL MOBILITH SHC460
Maximum Speed (RPM) - 1400 rpm
Maximum Temperature (C) - 107 C
Maximum Temperature (F) - 225 F
Microlock Kit - ML4
Mounting Bolt Size (in) - 3/4 in
Mounting Pad Height (in) - 1 15/16 in
Weight (kg) - 18.370476
Primary Seal - BUNA SPRING LOADED LIP SEAL
Radial Dynamic Load Capacity (lb) - 84330 lb
Radial Static Load Capacity (lb) - 90700 lb
Seal Kit - MS10
Setscrew Torque (in-lbs) - 680 in/lbs
Size Code - 10
Standoff Distance (in) - 1/4 in
Unit of Dimension - IN
Vibration Frequency Fundamental Train - 0.0073 cps
Vibration Frequency Inner Ring Defect - 0.1784 cps
Vibration Frequency Outer Ring Defect - 0.1383 cps
Vibration Frequency Roller Spin - 0.0628 cps
Volume - 2.539
Volume Unit - GLL
Width - 9.69
