MBH3035 RBC

Brand - RBC
Item Number - MBH3035 RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-3035)

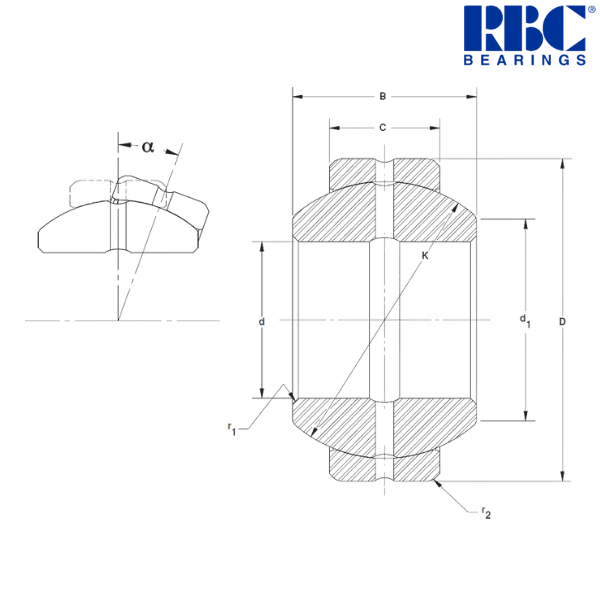

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 30 (-0.010) mm
Nominal Outside Diameter (D) - 55 (-0.013) mm
Nominal Inner Ring Width (B) - 32 (-0.12) mm
Nominal Outer Ring Width (C) - 20 (-0.30) mm
Sphere Diameter (K) - 48 mm
Unmounted Diametral Clearance - 0.07/0.17 mm
Shaft Shoulder Diameter (d1) - 36 mm
Tilt Angle (α) - 18°
Maximum Shaft Fillet (r1) - 0.6 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 0.31 kg
Static Radial Load Limit - 413 kN
Static Thrust Load Limit - 67.5 kN
Static Dynamic Load Limit - 82.6 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 29.98 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 29.967 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 30.017 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 30.008 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 54.97 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 54.940 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
