MBH2530-SS RBC

Brand - RBC
Item Number - MBH2530-SS RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-2530)

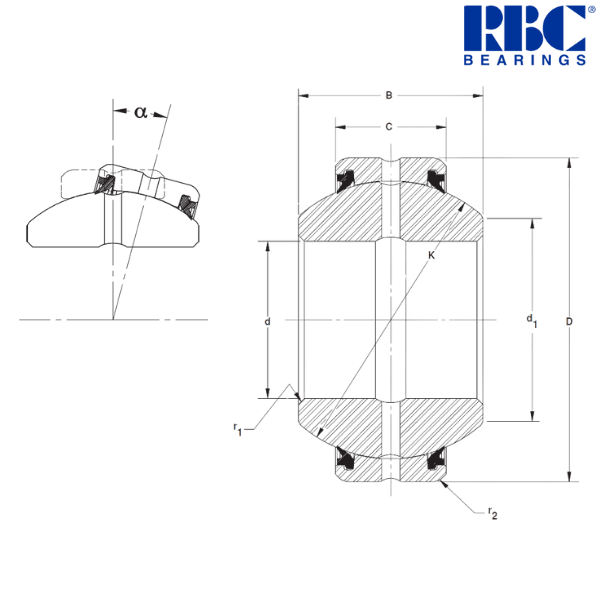

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 25 (-0.010) mm
Nominal Outside Diameter (D) - 47 (-0.011) mm
Nominal Inner Ring Width (B) - 28 (-0.12) mm
Nominal Outer Ring Width (C) - 18 (-0.24) mm
Sphere Diameter (K) - 41 mm
Unmounted Diametral Clearance - 0.07/0.17 mm
Shaft Shoulder Diameter (d1) - 30 mm
Tilt Angle (α) - 9°
Maximum Shaft Fillet (r1) - 0.6 mm
Maximum Housing Fillet (r2) - 0.6 mm
Approximate Weight - 0.2 kg
Static Radial Load Limit - 317 kN
Static Thrust Load Limit - 54.7 kN
Static Dynamic Load Limit - 63.5 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 24.98 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 24.967 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 25.017 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 25.008 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 46.975 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 46.950 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating and Fracture.
