MBH200220-9L RBC

Brand - RBC
Item Number - MBH200220-9L RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-200220)

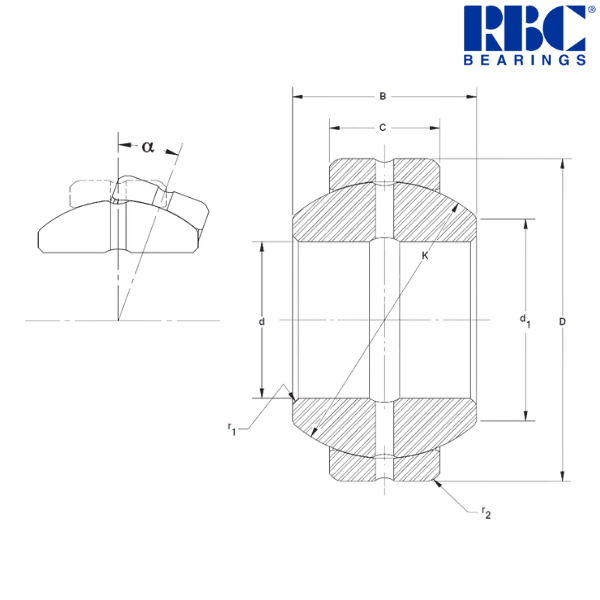

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 200 (-0.030) mm
Nominal Outside Diameter (D) - 320 (-0.040) mm
Nominal Inner Ring Width (B) - 165 (-0.30) mm
Nominal Outer Ring Width (C) - 100 (-0.80) mm
Sphere Diameter (K) - 286 mm
Unmounted Diametral Clearance - 0.15/0.27 mm
Shaft Shoulder Diameter (d1) - 233 mm
Tilt Angle (α) - 15°
Maximum Shaft Fillet (r1) - 1.1 mm
Maximum Housing Fillet (r2) - 1.1 mm
Approximate Weight - 47.88 kg
Static Radial Load Limit - 12300 kN
Static Thrust Load Limit - 1700 kN
Static Dynamic Load Limit - 2500 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 199.95 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 199.921 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 200.037 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 200.017 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 319.913 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 319.856 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• Outer rings of bearings size 160 and above are double fractured (suffix-9L).
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
