MBH140160-9L RBC

Brand - RBC
Item Number - MBH140160-9L RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-140160)

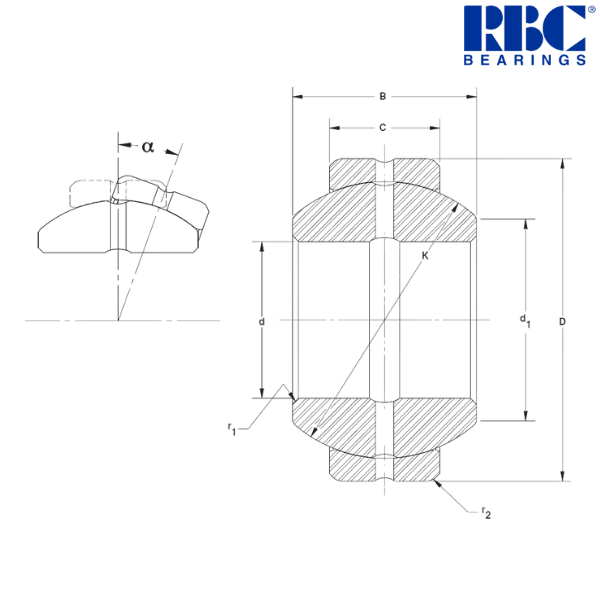

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 140 (-0.025) mm
Nominal Outside Diameter (D) - 230 (-0.030) mm
Nominal Inner Ring Width (B) - 130 (-0.25) mm
Nominal Outer Ring Width (C) - 80 (-0.60) mm
Sphere Diameter (K) - 206 mm
Unmounted Diametral Clearance - 0.13/0.23 mm
Shaft Shoulder Diameter (d1) - 160 mm
Tilt Angle (α) - 16°
Maximum Shaft Fillet (r1) - 1 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 19.96 kg
Static Radial Load Limit - 7100 kN
Static Thrust Load Limit - 1100 kN
Static Dynamic Load Limit - 1420 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 139.957 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 139.932 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 140.033 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 140.015 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 229.933 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 229.887 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• Outer rings of bearings size 160 and above are double fractured (suffix-9L).
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
