MBH120140 RBC

Brand - RBC
Item Number - MBH120140 RBC
Category - High Misalignment Spherical Plain Bearings
Basic Part Number - (-120140)

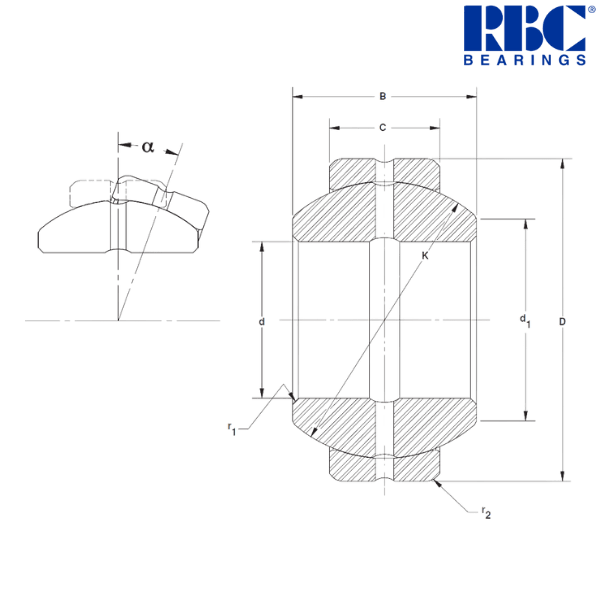

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 120 (-0.020) mm
Nominal Outside Diameter (D) - 210 (-0.030) mm
Nominal Inner Ring Width (B) - 115 (-0.20) mm
Nominal Outer Ring Width (C) - 70 (-0.60) mm
Sphere Diameter (K) - 187 mm
Unmounted Diametral Clearance - 0.13/0.23 mm
Shaft Shoulder Diameter (d1) - 147 mm
Tilt Angle (α) - 16°
Maximum Shaft Fillet (r1) - 1 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 15.93 kg
Static Radial Load Limit - 5600 kN
Static Thrust Load Limit - 830 kN
Static Dynamic Load Limit - 1120 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 119.964 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 119.942 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 120.028 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 120.013 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 209.937 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 209.891 mm

Notes about MBH Series :
Thanks to a thicker inner ring, the BH-L and MBH series can accommodate increased misalignment. These bearings are offered in both open and sealed versions, with options in inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating and Fracture.

♦ ♦ Images are for representation purposes only
