MB70-SS RBC

Brand - RBC
Item Number - MB70-SS RBC
Category - Radial spherical Plain Bearing
Basic Part Number - (-70)

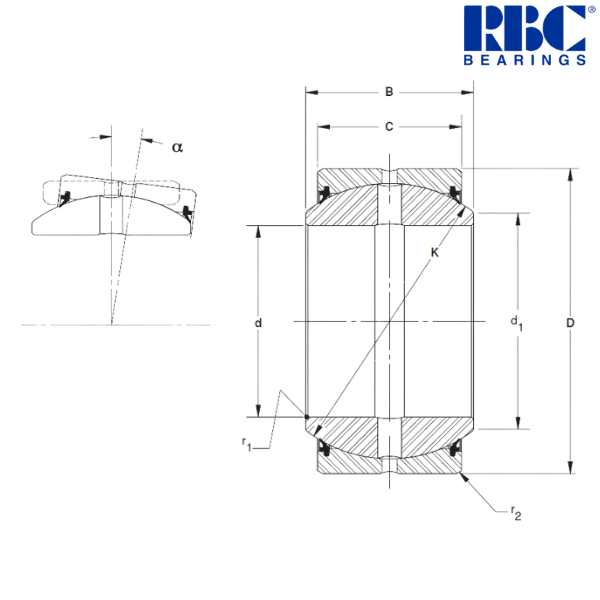

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 70 (-0.015) mm
Nominal Outside Diameter (D) - 105 (-0.015) mm
Nominal Inner Ring Width (B) - 49 (-0.15) mm
Nominal Outer Ring Width (C) - 40 (-0.40) mm
Sphere Diameter (K) - 94 mm
Unmounted Diametral Clearance - 0.10/0.20 mm
Shaft Shoulder Diameter (d1) - 80 mm
Tilt Angle (α) - 4°
Maximum Shaft Fillet (r1) - 1 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 1.6 kg
Static Radial Load Limit - 1620 kN
Static Thrust Load Limit - 270 kN
Static Dynamic Load Limit - 325 kN
Maximum Recommended Shaft Diameter ISO f6 (Slip Fit) - 69.97 mm
Minimum Recommended Shaft Diameter ISO f6 (Slip Fit) - 69.951 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 70.024 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 70.011 mm
Maximum Recommended Housing Bore ISO R7 (Press Fit) - 104.959 mm
Minimum Recommended Housing Bore ISO R7 (Press Fit) - 104.924 mm

Notes about MB Series :
These bearings are built to handle substantial radial loads even when misalignment occurs. They can also support a moderate amount of thrust load. Featuring a non-separable design with a single split outer ring, they are offered in both open and sealed configurations, and are available in both inch and metric dimensions.

Other salient point to be noted :
• All dimensions apply before MoS2 coating and Fracture.
