MB30-SA RBC

Brand - RBC
Item Number - MB30-SA RBC
Category - Spherical Plain Angular Contact Bearings (Single Acting)
Basic Part Number - (-30)
Outer Ring Part Number - ORMB30-SA
Inner Ring Part Number - IRMB30-SA

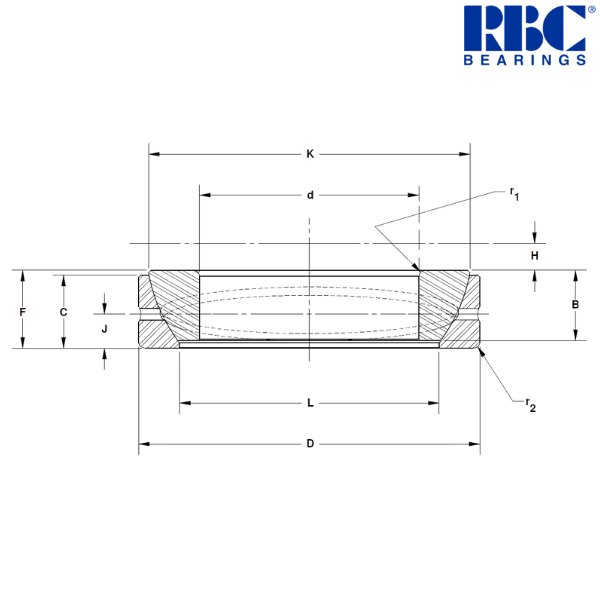

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 30 (+0.000 to -0.012) mm
Nominal Outside Diameter (D) - 55 (+0.000 to-0.016) mm
Overall Width (F) - 17 (+0.250 to-0.400) mm
Inner Ring Width (B) - 16 (+0.000 to-0.240) mm
Outer Ring Width (C) - 16 (+0.000 to-0.200) mm
Sphere Diameter (K) - 48 mm
End to Hole (J) - 7.5 mm
Loc. Sphere Diameter (H) - 2 mm
Outer Ring Bore (L) - 31 mm
Maximum Shaft Fillet (r1) - 1 mm
Maximum Housing Fillet (r2) - 1 mm
Approximate Weight - 0.21 kg
Static Radial Load Limit - 310 kN
Static Thrust Load Limit - 390 kN
Dynamic Radial Load Limit - 60 kN
Dynamic Thrust Load Limit - 78 kN
Maximum Recommended Shaft Diameter ISO g6 (Slip Fit) - 29.993 mm
Minimum Recommended Shaft Diameter ISO g6 (Slip Fit) - 29.980 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 30.017 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 30.008 mm
Maximum Housing Bore ISO N7 (Press Fit) - 54.991 mm
Minimum Housing Bore ISO N7 (Press Fit) - 54.961 mm

Notes about B....Sa Series :
These bearings are engineered to handle heavy one-directional thrust loads as well as combined radial and thrust loads. They come standard with elliptical lubrication grooves for enhanced performance and are available in both inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating.
• For bearings with grooves extended to the face of the outer ring at two places, add suffix “-1”, e.g. MB50SA-1
