MB170-SA RBC

Brand - RBC
Item Number - MB170-SA RBC
Category - Spherical Plain Angular Contact Bearings (Single Acting)
Basic Part Number - (-170)
Outer Ring Part Number - ORMB170-SA
Inner Ring Part Number - IRMB170-SA

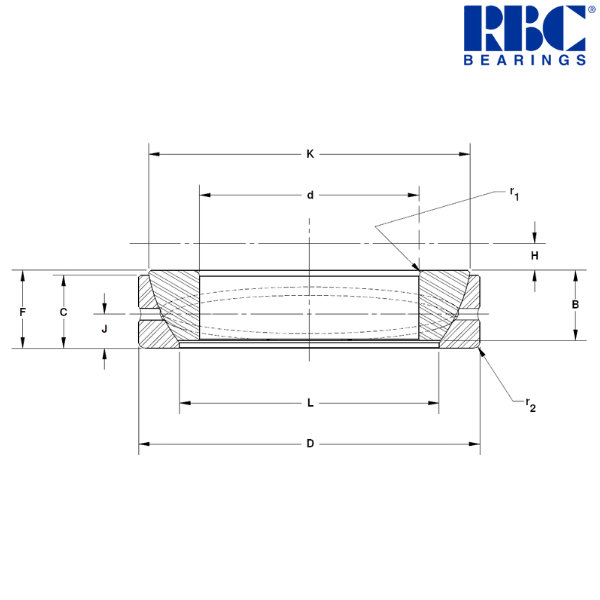

Principal Dimensions & Load Ratings (Metric) :
Nominal Inside Diameter (d) - 170 (+0.000 to -0.025) mm
Nominal Outside Diameter (D) - 260 (+0.000 to-0.035) mm
Overall Width (F) - 57 (+0.350 to-0.700) mm
Inner Ring Width (B) - 54 (+0.000 to-0.500) mm
Outer Ring Width (C) - 55 (+0.000 to-0.500) mm
Sphere Diameter (K) - 234 mm
End to Hole (J) - 25.5 mm
Loc. Sphere Diameter (H) - 21 mm
Outer Ring Bore (L) - 179 mm
Maximum Shaft Fillet (r1) - 3 mm
Maximum Housing Fillet (r2) - 3 mm
Approximate Weight - 12.95 kg
Static Radial Load Limit - 5,130 kN
Static Thrust Load Limit - 6520 kN
Dynamic Radial Load Limit - 1026 kN
Dynamic Thrust Load Limit - 1304 kN
Maximum Recommended Shaft Diameter ISO g6 (Slip Fit) - 169.986 mm
Minimum Recommended Shaft Diameter ISO g6 (Slip Fit) - 169.961 mm
Maximum Recommended Shaft Diameter ISO m5 (Press Fit) - 170.033 mm
Minimum Recommended Shaft Diameter ISO m5 (Press Fit) - 170.015 mm
Maximum Housing Bore ISO N7 (Press Fit) - 259.986 mm
Minimum Housing Bore ISO N7 (Press Fit) - 259.934 mm

Notes about B....Sa Series :
These bearings are engineered to handle heavy one-directional thrust loads as well as combined radial and thrust loads. They come standard with elliptical lubrication grooves for enhanced performance and are available in both inch and metric sizes.

Other salient points to be noted :
• All dimensions apply before MoS2 coating.
• For bearings with grooves extended to the face of the outer ring at two places, add suffix “-1”, e.g. MB50SA-1
