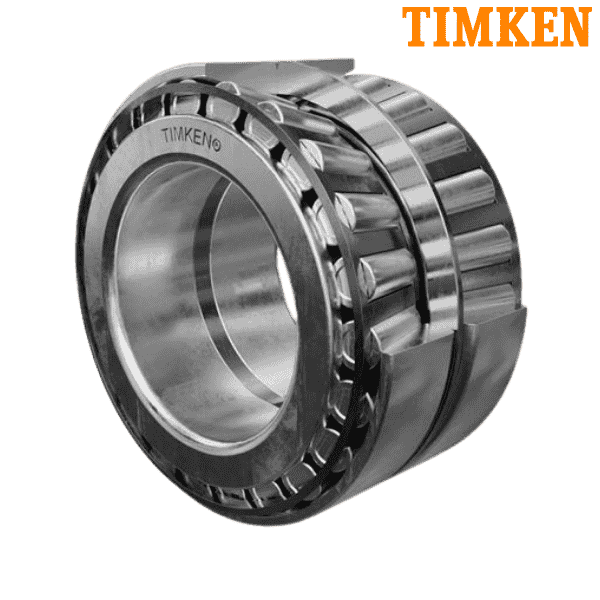

M349549/M349510 (M349549XA / M349510EA) TIMKEN

Brand - TIMKEN
Item Number - M349549/M349510 (M349549XA / M349510EA) TIMKEN
Also Known As - M349549 - M349510 (M349549XA - M349510EA)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 257.175
Bore Diameter (d) inch - 10.125
Outer Diameter (D) mm - 342.9
Outer Diameter (D) inch - 13.5
Width (T) mm - 215.9
Width (T) inch - 8.5
Width (C) mm - 190.5
Width (C) inch - 7.5
Dynamic Radial Rating (C1) N - 1360000
Dynamic Radial Rating (C1) lbf - 305000
Factor (e) - 0.35
Factor (Y1) - 1.94
Factor (Y2) - 2.89
Dynamic Radial Rating (90 million revolutions) (C90) N - 202000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 45500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 120000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 27000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 352000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 79200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.68
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Backing Shoulder Diameter (db) mm - 281
Backing Shoulder Diameter (db) inch - 11.06
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 333
Cup Frontface Backing Diameter (Da) inch - 13.11
Weight (kg) - 43.51
Weight (lbs) - 95.91
Inner Spacer - M349549XA
Outer Spacer - M349510EA
Inner Part Number - M349549
Outer Part Number - M349510
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

** Images are for representation purposes only
