M327349/67322 (Y1S-67322) TIMKEN

Brand - TIMKEN
Item Number - M327349/67322 (Y1S-67322) TIMKEN
Also Known As - M327349 - 67322 (Y1S-67322)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 133.35
Bore Diameter (d) inch - 5.25
Outer Diameter (D) mm - 196.85
Outer Diameter (D) inch - 7.75
Width (T) mm - 92.075
Width (T) inch - 3.625
Width (B) mm - 92.075
Width (B) inch - 3.625
Dynamic Radial Rating (C1) N - 672000
Dynamic Radial Rating (C1) lbf - 151000
Factor (e) - 0.34
Factor (Y1) - 1.96
Factor (Y2) - 2.92
Dynamic Radial Rating (90 million revolutions) (C90) N - 100000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 22500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 58900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 13300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 174000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 39200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.7
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Backing Shoulder Diameter (db) mm - 144
Backing Shoulder Diameter (db) inch - 5.67
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 180
Cup Frontface Backing Diameter (Da) inch - 7.09
Weight (kg) - 9.42
Weight (lbs) - 20.76
Outer Spacer - Y1S-67322
Inner Part Number - M327349
Outer Part Number - 67322
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

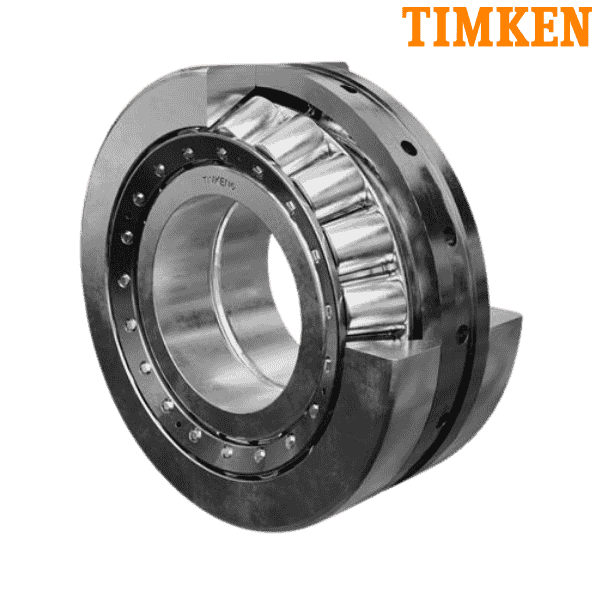

** Images are for representation purposes only
