M249749AH/M249710 (M249749XS / M249710EW) TIMKEN

Brand - TIMKEN
Item Number - M249749AH/M249710 (M249749XS / M249710EW) TIMKEN
Also Known As - M249749AH - M249710 (M249749XS - M249710EW)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 254
Bore Diameter (d) inch - 10
Outer Diameter (D) mm - 358.775
Outer Diameter (D) inch - 14.125
Width (T) mm - 159
Width (T) inch - 6.2598
Width (C) mm - 124.074
Width (C) inch - 4.8848
Dynamic Radial Rating (C1) N - 1450000
Dynamic Radial Rating (C1) lbf - 327000
Factor (e) - 0.33
Factor (Y1) - 2.03
Factor (Y2) - 3.02
Dynamic Radial Rating (90 million revolutions) (C90) N - 217000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 48700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 123000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 27700
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 377000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 84800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Backing Shoulder Diameter (db) mm - 270
Backing Shoulder Diameter (db) inch - 10.63
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 343
Cup Frontface Backing Diameter (Da) inch - 13.5
Weight (kg) - 45.2
Weight (lbs) - 99.68
Inner Spacer - M249749XS
Outer Spacer - M249710EW
Inner Part Number - M249749AH
Outer Part Number - M249710
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

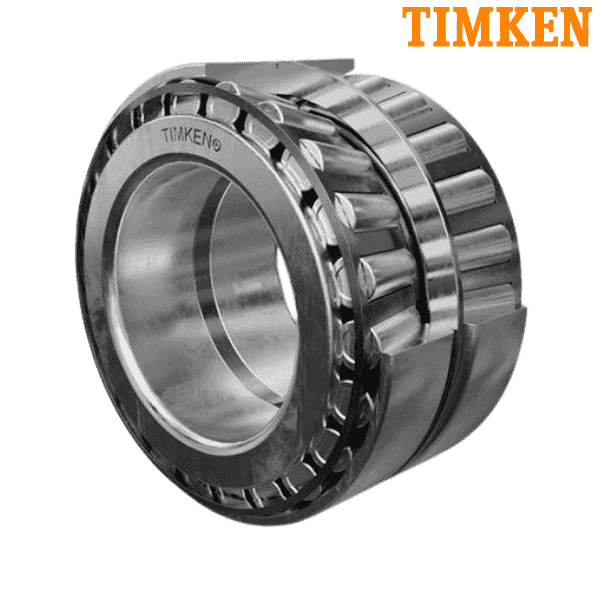

** Images are for representation purposes only
