M249747/M249710 (M249747XB / M249710EX) TIMKEN

Brand - TIMKEN
Item Number - M249747/M249710 (M249747XB / M249710EX) TIMKEN
Also Known As - M249747 - M249710 (M249747XB - M249710EX)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 257.175
Bore Diameter (d) inch - 10.125
Outer Diameter (D) mm - 358.775
Outer Diameter (D) inch - 14.125
Width (T) mm - 161.926
Width (T) inch - 6.375
Width (C) mm - 127
Width (C) inch - 5
Dynamic Radial Rating (C1) N - 1450000
Dynamic Radial Rating (C1) lbf - 327000
Factor (e) - 0.33
Factor (Y1) - 2.03
Factor (Y2) - 3.02
Dynamic Radial Rating (90 million revolutions) (C90) N - 217000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 48700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 123000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 27700
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 377000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 84800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Backing Shoulder Diameter (db) mm - 272
Backing Shoulder Diameter (db) inch - 10.71
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 343
Cup Frontface Backing Diameter (Da) inch - 13.5
Weight (kg) - 43.67
Weight (lbs) - 96.26
Inner Spacer - M249747XB
Outer Spacer - M249710EX
Inner Part Number - M249747
Outer Part Number - M249710
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

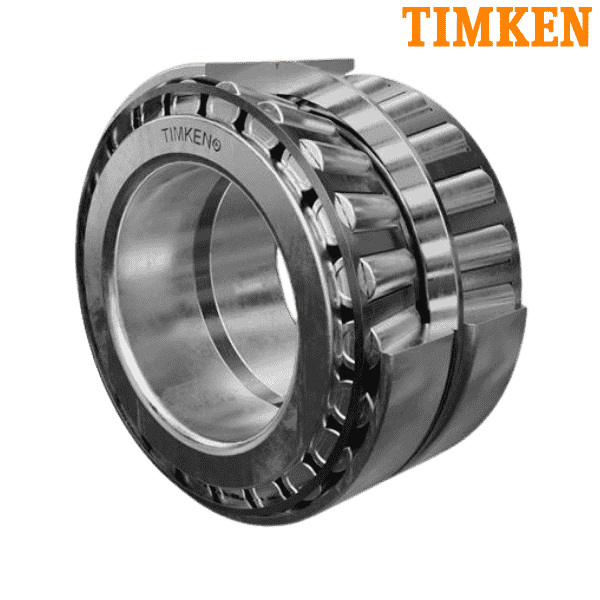

** Images are for representation purposes only
