M249746TD/M249710 TIMKEN

Brand - TIMKEN
Item Number - M249746TD/M249710 TIMKEN
Also KNown As - M249746TD - M249710
Category - Double Row Tapered Roller Bearing (TDIT Type)

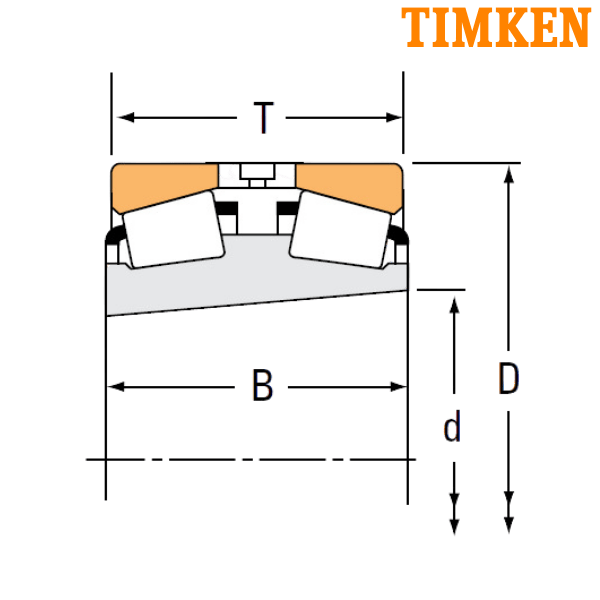

Bore Diameter (d) mm - 252.412
Bore Diameter (d) inch - 9.9375
Taper - 0.05
Outer Diameter (D) mm - 358.775
Outer Diameter (D) inch - 14.125
Width (T) mm - 130.175
Width (T) inch - 5.125
Double Inner Ring Width (B) mm - 139.7
Double Inner Ring Width (B) inch - 5.5
Dynamic Load Rating (C1) N - 1590000
Dynamic Load Rating (C1) lbf - 358000
Factor (e) - 0.33
Factor (Y1) - 2.03
Factor (Y2) - 3.02
Dynamic Radial Rating (90 million revolutions) (C90) N - 237000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 53300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 135000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 30300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 413000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 92800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76

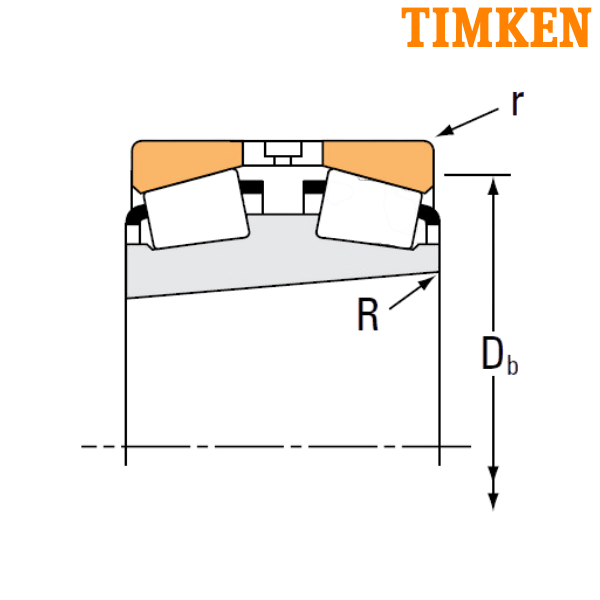

Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Backface Backing Diameter (Db) mm - 335
Cup Backface Backing Diameter (Db) inch - 13.19
Geometry Factor (G1) - 1626
Geometry Factor (G2) - 173
Geometry Factor (Cg) - 0.1526
Weight (kg) - 45.97
Weight (lbs) - 101.36
Inner Part Number - M249746TD
Outer Part Number - M249710
TDIT - Double Inner-Ring Bearing with a Tapered Bore

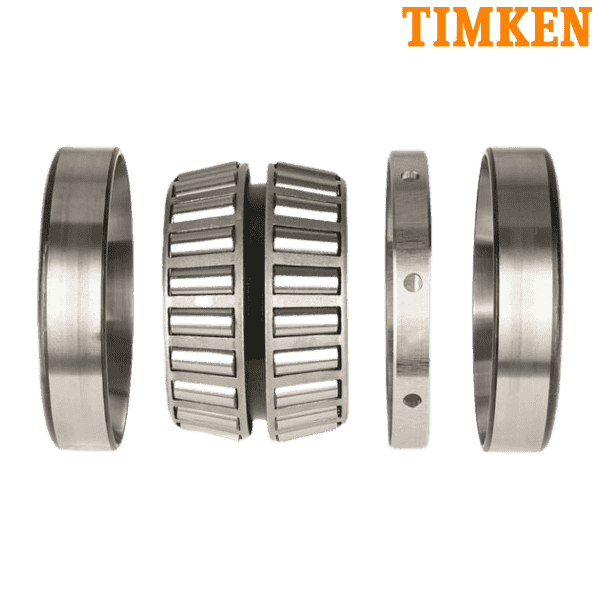

** Images are for representation purposes only
