M244249/M244210 (M244249XA / M244210ER) TIMKEN

Brand - TIMKEN
Item Number - M244249/M244210 (M244249XA / M244210ER) TIMKEN
Also Known As - M244249 - M244210 (M244249XA - M244210ER)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 220.662
Bore Diameter (d) inch - 8.6875
Outer Diameter (D) mm - 314.325
Outer Diameter (D) inch - 12.375
Width (T) mm - 131.762
Width (T) inch - 5.1875
Width (C) mm - 106.362
Width (C) inch - 4.1875
Dynamic Radial Rating (C1) N - 1210000
Dynamic Radial Rating (C1) lbf - 272000
Factor (e) - 0.33
Factor (Y1) - 2.03
Factor (Y2) - 3.02
Dynamic Radial Rating (90 million revolutions) (C90) N - 180000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 40500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 103000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 23100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 314000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 70500
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Backing Shoulder Diameter (db) mm - 245
Backing Shoulder Diameter (db) inch - 9.65
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 300
Cup Frontface Backing Diameter (Da) inch - 11.81
Weight (kg) - 29.87
Weight (lbs) - 65.87
Inner Spacer - M244249XA
Outer Spacer - M244210ER
Inner Part Number - M244249
Outer Part Number - M244210
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

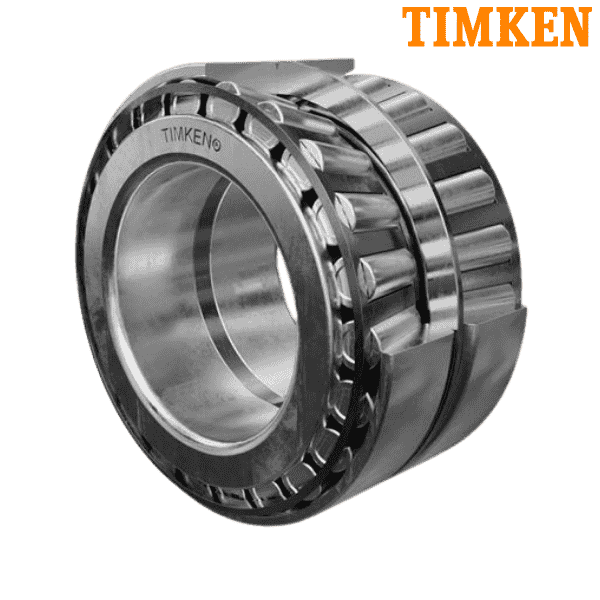

** Images are for representation purposes only
