M241549/M241510 (M241510EC) TIMKEN

Brand - TIMKEN
Item Number - M241549/M241510 (M241510EC) TIMKEN
Also Known As - M241549 - M241510 (M241510EC)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 204.788
Bore Diameter (d) inch - 8.0625
Outer Diameter (D) mm - 292.1
Outer Diameter (D) inch - 11.5
Width (T) mm - 115.888
Width (T) inch - 4.5626
Width (B) mm - 115.89
Width (B) inch - 4.5626
Dynamic Radial Rating (C1) N - 1040000
Dynamic Radial Rating (C1) lbf - 235000
Factor (e) - 0.33
Factor (Y1) - 2.03
Factor (Y2) - 3.02
Dynamic Radial Rating (90 million revolutions) (C90) N - 156000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 35000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 88500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 19900
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 271000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 60900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Backing Shoulder Diameter (db) mm - 219
Backing Shoulder Diameter (db) inch - 8.62
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 272
Cup Frontface Backing Diameter (Da) inch - 10.71
Weight (kg) - 24.6
Weight (lbs) - 54.22
Outer Spacer - M241510EC
Inner Part Number - M241549
Outer Part Number - M241510
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

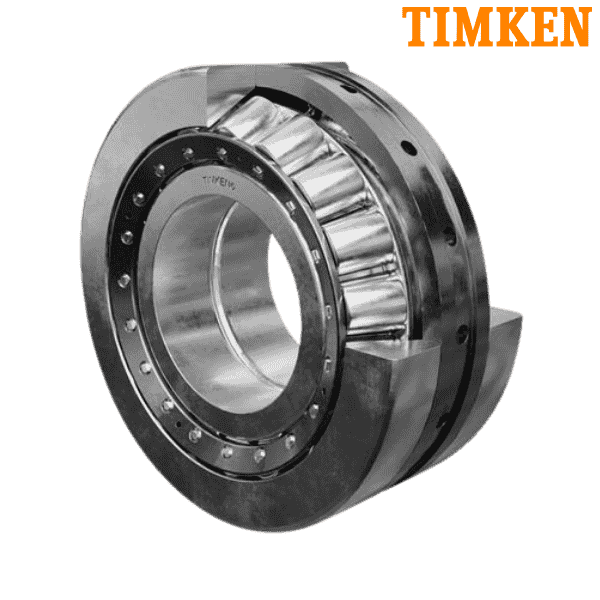

** Images are for representation purposes only
