M231647/M231616XD TIMKEN

Brand - TIMKEN
Item Number - M231647/M231616XD TIMKEN
Also Known As - M231647 - M231616XD
Category - Double Row Tapered Roller Bearing (TNA Type)

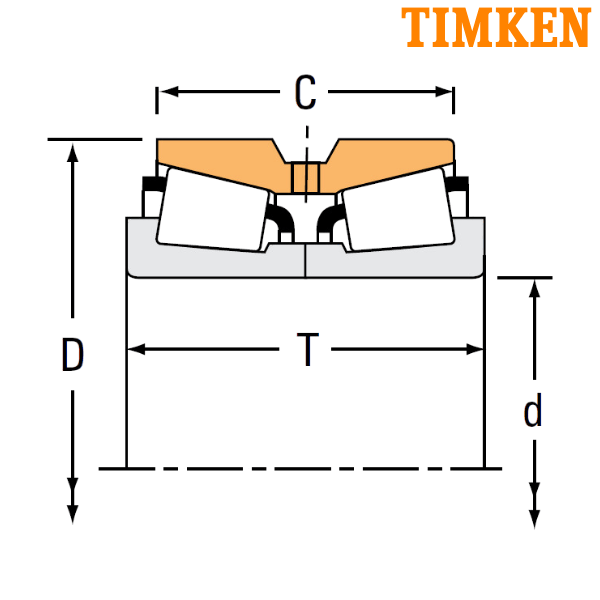

Bore Diameter (d) mm - 150.967
Bore Diameter (d) inch - 5.9436
Outer Diameter (D) mm - 229.873
Outer Diameter (D) inch - 9.0501
Width (T) mm - 108
Width (T) inch - 4.252
Double Outer Ring Width (C) mm - 116
Double Outer Ring Width (C) inch - 4.5669
Dynamic Load Rating (C1) N - 597000
Dynamic Load Rating (C1) lbf - 134000
Factor (e) - 0.33
Factor (Y1) - 2.03
Factor (Y2) - 3.02
Dynamic Radial Rating (90 million revolutions) (C90) N - 88900
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 20000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 50600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 11400
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 155000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 34800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76

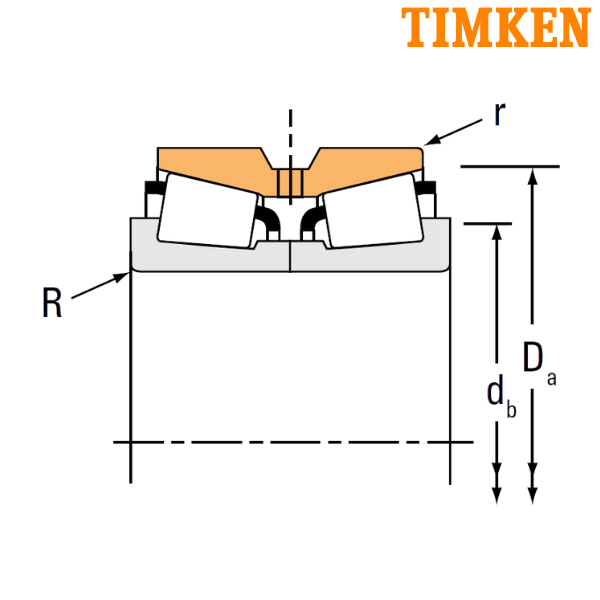

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 168
Backing Shoulder Diameter (db) inch - 6.61
Maximum Housing Fillet Radius (r) mm - **
Maximum Housing Fillet Radius (r) inch - **
Cup Frontface Backing Diameter (Da) mm - 222
Cup Frontface Backing Diameter (Da) inch - 8.74
Weight (kg) - 16.14
Weight (lbs) - 35.57
Inner Part Number - M231647
Outer Part Number - M231616XD
TNA - Non-Adjustable, Double-Row Bearing

** Images are for representation purposes only
