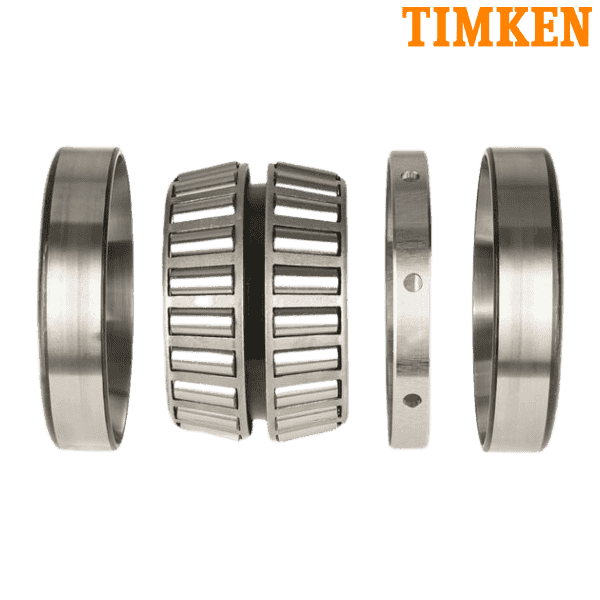

M224749D/M224710 TIMKEN

Brand - TIMKEN
Item Number - M224749D/M224710 TIMKEN
Also Known As - M224749D - M224710
Category - Double Row Tapered Roller Bearing (TDI Type)

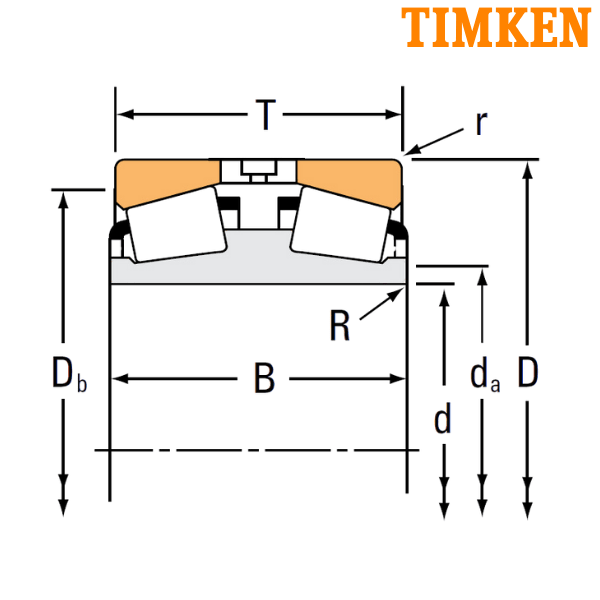

Bore Diameter (d) mm - 120.65
Bore Diameter (d) inch - 4.75
Outer Diameter (D) mm - 174.625
Outer Diameter (D) inch - 6.875
Bearing Width across Cups (T) mm - 66.678
Bearing Width across Cups (T) inch - 2.6251
Double Cone Width (B) mm - 68.262
Double Cone Width (B) inch - 2.6875
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 426000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 95700
Factor (e) - 0.3
Factor (Y1) - 2
Factor (Y2) - 3
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 63400
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 14200
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 36100
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 8110
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 110000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 24800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Cone Frontface Backing Diameter (da) mm - 129
Cone Frontface Backing Diameter (da) inch - 5.08
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Backface Backing Diameter (Db) mm - 162
Cup Backface Backing Diameter (Db) inch - 6.38
Geometry Factor (G1) - 279.1
Geometry Factor (G2) - 86.6
Geometry Factor (Cg) - 0.1575
Weight (kg) - 5.82
Weight (lbs) - 12.83
Inner Part Number - M224749D
Outer Part Number - M224710
TDI - Double Inner Ring
