Description
Brand - NADELLA
Item Number - LX 142 NADELLA
Category - Adjusting Nut (LX Series)
Principal Dimensions & Load Ratings (Metric):
Thread (A) - 142 x 2
Dimension (D) Ø - 117 mm
Dimension (B) Ø - 118 mm
Dimension (C) - 20 mm
Dimension (d) Ø - 5.2 mm
Grub Screw (Hc) - 2 x M6
Maximum Axial Load - 714600 N
Weight - 0.73 kg
Other salient points to be noted:

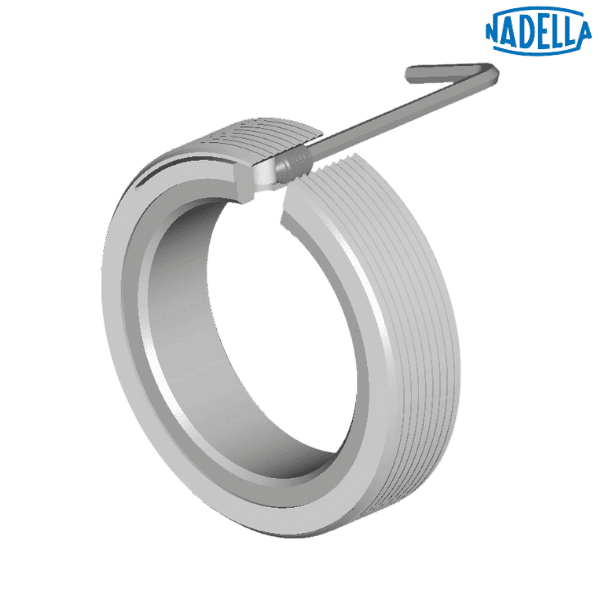

• LX rings operate on the same principle as LF nuts but are designed for bores, making them ideal for securing components inside housings or enclosed spaces
• Axial force is applied by tightening the Hc grub screw, which transfers the force through 90° wedges to the threaded spring
• This creates radial pressure on the spring, resulting in strong clamping force
• The generated clamping pressure on the threaded surface ensures a secure and reliable lock
• A contact surface perpendicular to the thread supports accurate adjustment and secure locking of bearings and other precision components
• Front-side holes, along with notches, facilitate easy installation using a spanner wrench
• Material: High elastic limit steel
• Peripheral notches: 4 at 90°
• Screw: Hc type set-screw with cone tip 14.9
• Standard manufacturing: 4g class precision threading, Fine ground threads, Right-hand thread, Fine-ground contact face, Marquing on the opposite side, Black oxide
• Other versions are also available upon request: Left-hand thread, Additional clamping springs, Other sizes, Other materials
♦ ♦ Images are for representation purposes only
