Description
Brand - NADELLA
Item Number - LUBZ15D NADELLA
Category - Lubrication Wheel

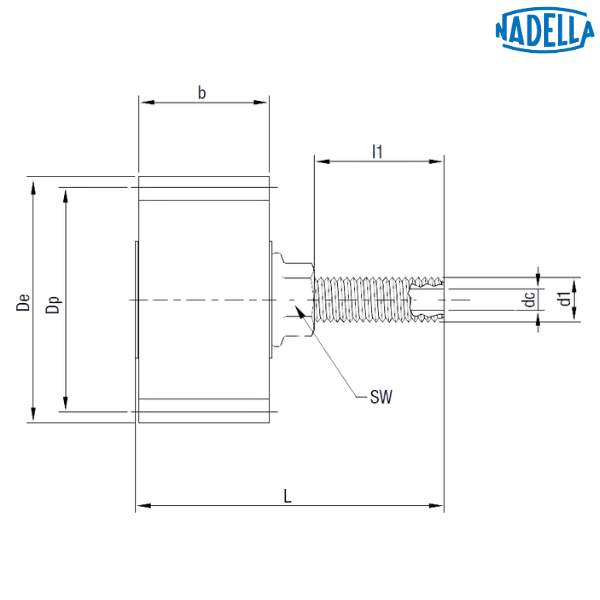

Principal Dimensions & Load Ratings (Metric):
Dimension (Z) - 24 mm
Dimension (m) - m 1.5
Dimension (De) - 39 mm
Dimension (Dp) - 36 mm
Dimension (b) - 15 mm
Dimension (dc) - M6
Dimension (d1) - M10
Dimension (L) - 60.2 mm
Dimension (l1) - 34 mm
Dimension (SW) - 17 mm
Weight - 0.07 kg
Description of Suffixes and Prefixes:
LUBZ - Lubrication wheel
D - Felt without lubricant
Other salient points to be noted:
Material: Open cell poliuretane foam
♦ ♦ Images are for representation purposes only
