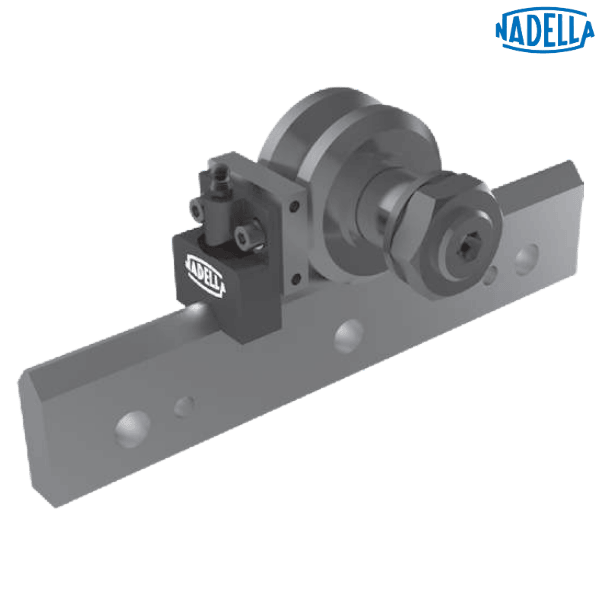

Description
Brand - NADELLA
Item Number - LUBY 62 NADELLA
Category - Lubricator for FS Guide Rollers Size 52 and Higher
Principal Dimensions & Load Ratings (Metric):

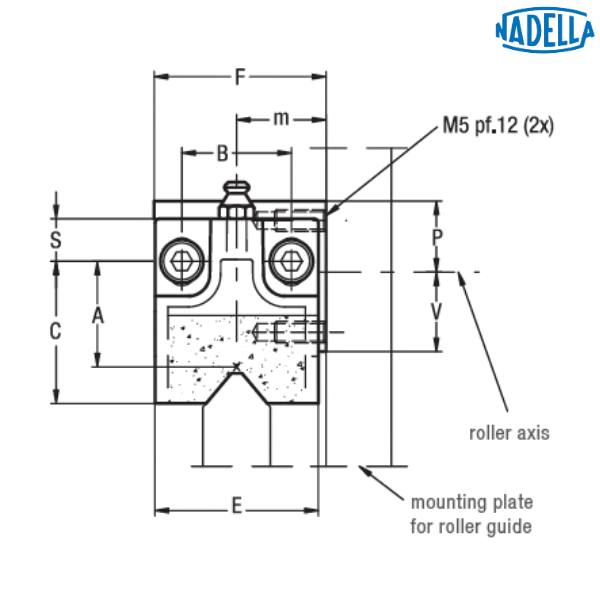

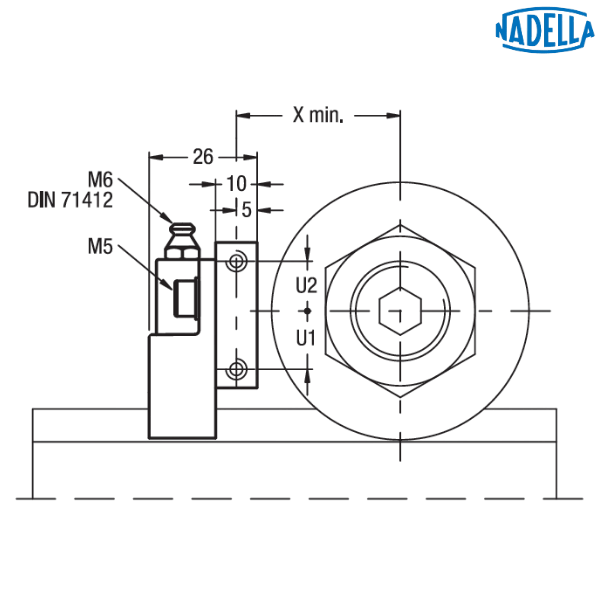

Dimension (X) - 38.5 mm
Dimension (U1) - 14 mm
Dimension (U2) - 12 mm
Dimension (F) - 40 mm
Dimension (m) - 20.8 mm
Dimension (B) - 25.5 mm
Dimension (S*) - 10 mm
Dimension (C*) - 34 mm
Dimension (A*) - 24.5 mm
Dimension (E) - 38 mm
Dimension (V) - 18.5 mm
Dimension (P) - 16.5 mm
Weight - 0.065 kg
Suggested Combinations - RKY 62, RKYR 62, FKY 62, FR 62 EU, FRR 62, EU ... AS / AZ
Description of Prefix:
LUBY - Lubricator for V-Line system (guide rollers running on FS and FSH rails)
Other salient points to be noted:
* The dimension of the plastic part refers to the centre of the regulation slot. The regulation slot allows a translation of +/- 3 mm
• The lubricator is supplied with the felt already lubricated. The lubricant has a mineral oil base
• During the mounting fix the aluminium support to the rollers plate, adjust the height of the plastic part in order to put it in contact with the raceways and than block it in that position with the M5 screws
Optional Features:
• Felt without lubricant (D)
