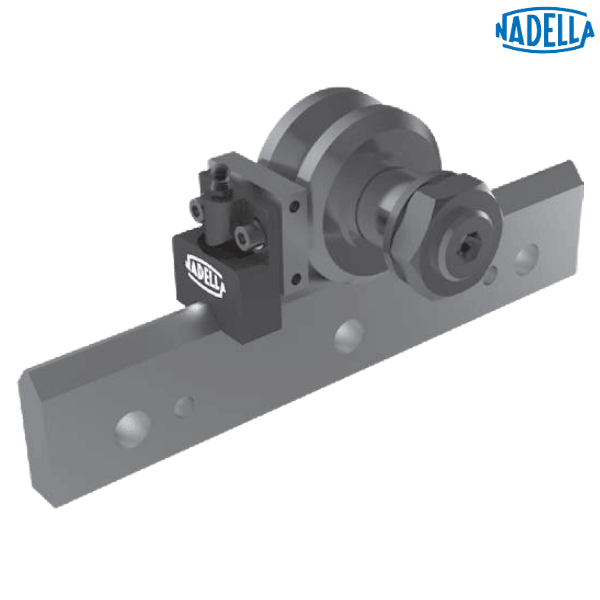

Description
Brand - NADELLA
Item Number - LUBY 32 NADELLA
Category - V-Line Lubricator for FS Guide Rollers up to Size 42
Principal Dimensions & Load Ratings (Metric):

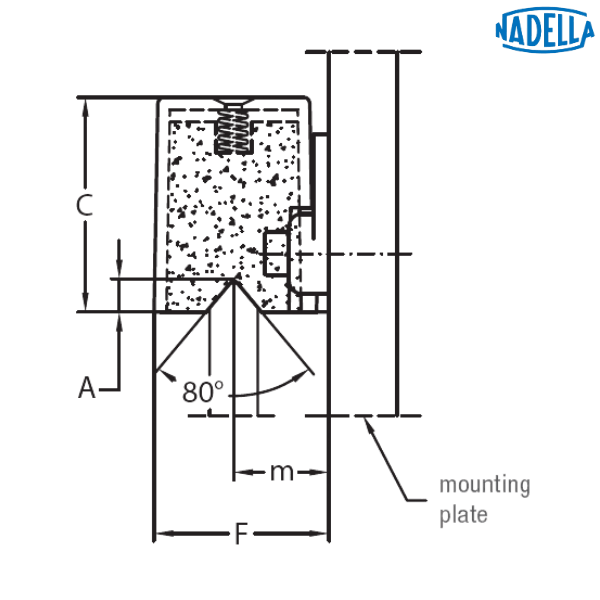

Dimension (X) - 21.5 mm
Dimension (U) - 8 mm
Dimension (B) - 25 mm
Dimension (F) - 23.2 mm
Dimension (m) - 12.6 mm
Dimension (A) - 4.2 mm
Dimension (C) - 30 mm
Dimension (P) - 32.5 mm
Dimension (Vf*) - M3 x 12
Dimension (Vr**) - M4
Weight - 0.015 kg
Suggested Combinations - FR ... 32 ...
Description of Prefix:
LUBY - Lubricator for V-Line system (guide rollers running on FS and FSH rails)
Other salient points to be noted:
* The screws Vf for the frontal mounting are included in the packaging. Arrange two thread holes for dimension Vf in the mounting rollers plate
** The screws for the mounting on the nut side of the roller are not included in the packaging. Arrange on the mounting rollers plate the holes in orderto insert the screws Vr
• The lubricator is supplied with the felt already lubricated. The lubricant has a mineral oil base
• At the mounting, insert the screws inside the rollers plate, without tightening them, adjust the height of the plastic part in order to put it in contact with the raceways and then block it
Optional Features:
• Felt without lubricant (D)
