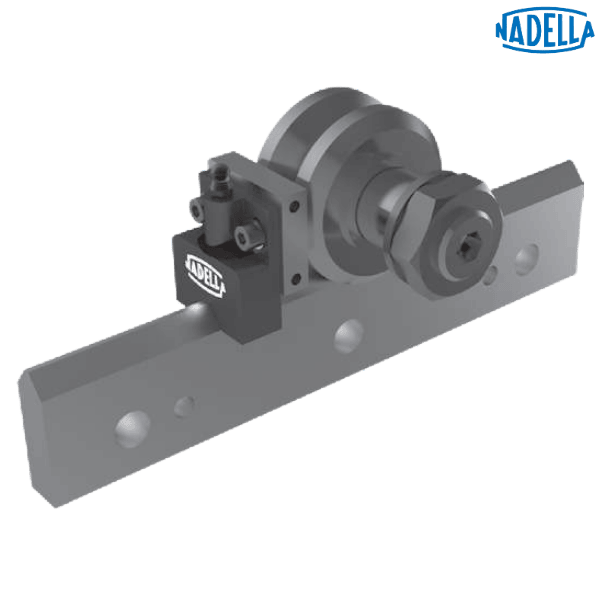

LUBX 90 NADELLA

Brand - NADELLA
Item Number - LUBX 90 NADELLA
Category - Lubricator for FS Guide Rollers Size 52 and Higher

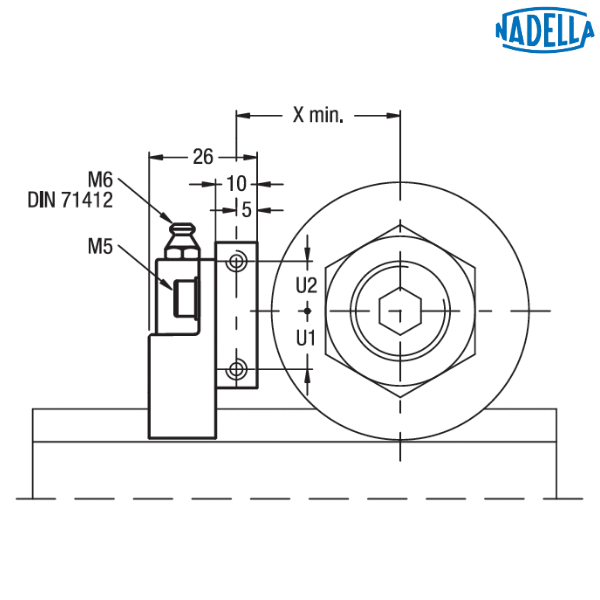

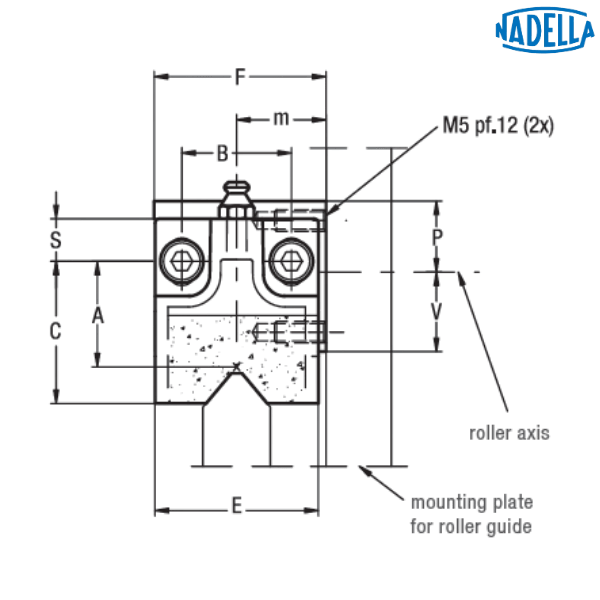

Principal Dimensions & Load Ratings (Metric):
Dimension (X) - 52.5 mm
Dimension (U1) - 21 mm
Dimension (U2) - 9 mm
Dimension (F) - 60 mm
Dimension (m) - 27 mm
Dimension (B) - 30 mm
Dimension (S*) - 16.5 mm
Dimension (C*) - 45.5 mm
Dimension (A*) - 33.5 mm
Dimension (E) - 58 mm
Dimension (V) - 31 mm
Dimension (P) - 19 mm
Weight - 0.14 kg
Suggested Combinations - RKX 90 C, RKXR 90 C, FKX 90 C

Description of Prefix:
LUBX - Lubricator for V-Line system (guide rollers running on FS and FSH rails)

Other salient points to be noted:
* The dimension of the plastic part refers to the centre of the regulation slot. The regulation slot allows a translation of +/- 3 mm

• The lubricator is supplied with the felt already lubricated. The lubricant has a mineral oil base
• During the mounting fix the aluminium support to the rollers plate, adjust the height of the plastic part in order to put it in contact with the raceways and than block it in that position with the M5 screws

Optional Features:
• Felt without lubricant (D)

♦ ♦ Images are for representation purposes only
