LUBU 95 NADELLA

Brand - NADELLA
Item Number - LUBU 95 NADELLA
Category - Heavy-Line Lubricator

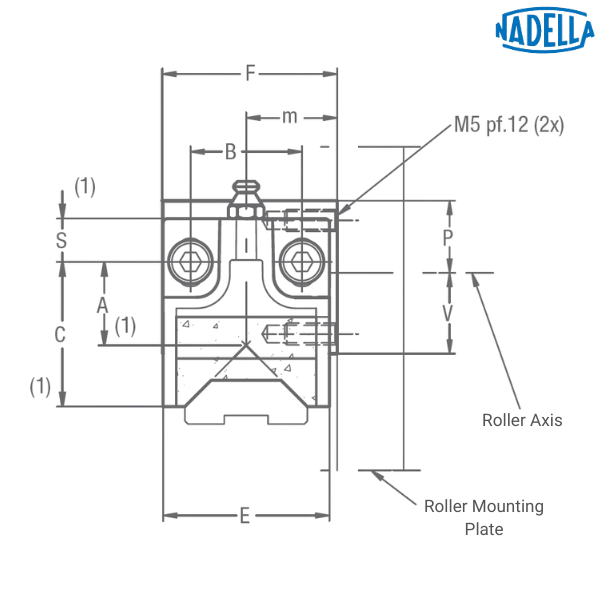

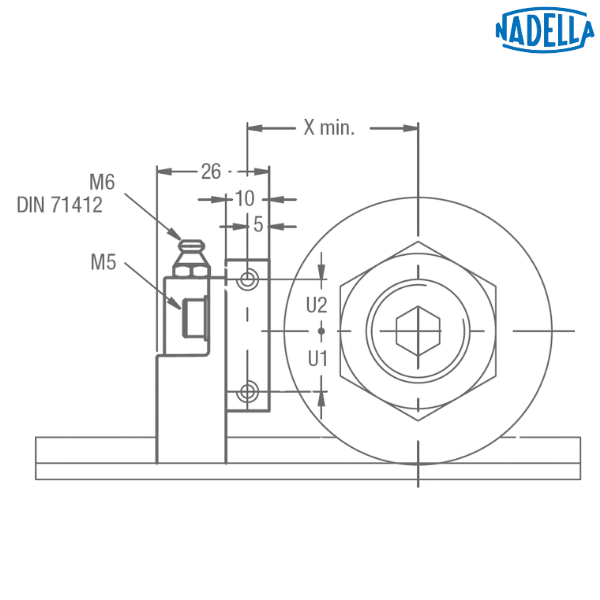

Principal Dimensions & Load Ratings (Metric):
Dimension (X) - 55 mm
Dimension (U1) - 21 mm
Dimension (U2) - 9 mm
Dimension (F) - 60 mm
Dimension (m) - 30 mm
Dimension (B) - 30 mm
Dimension (S*) - 16.5 mm
Dimension (C*) - 50 mm
Dimension (A*) - 24.9 mm
Dimension (E) - 58 mm
Dimension (V) - 31 mm
Dimension (P) - 19 mm
Weight - 0.14 kg
Suggested Combinations - RKU 95, RKUR 95, FKU 95

Description of Prefix:
LUBU - Lubricator for Heavy-Line system (guide rollers running on GU rails)

Other salient points to be noted:
• The lubricator is supplied with the felt already lubricated. The lubricant has a mineral oil base
• During the mounting fix the aluminium support to the rollers plate, adjust the height of the plastic part in order to put it in contact with the raceways and than block it in that position with the M5 screws

* The dimension of the plastic part refers to the centre of the regulation-slot. Allows a translation of +/- 3 mm

Optional Features:
• Felt without lubricant (D)

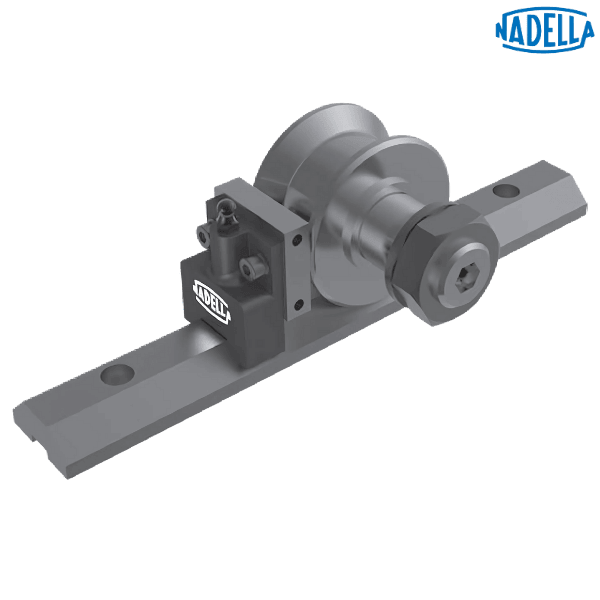

♦ ♦ Images are for representation purposes only
