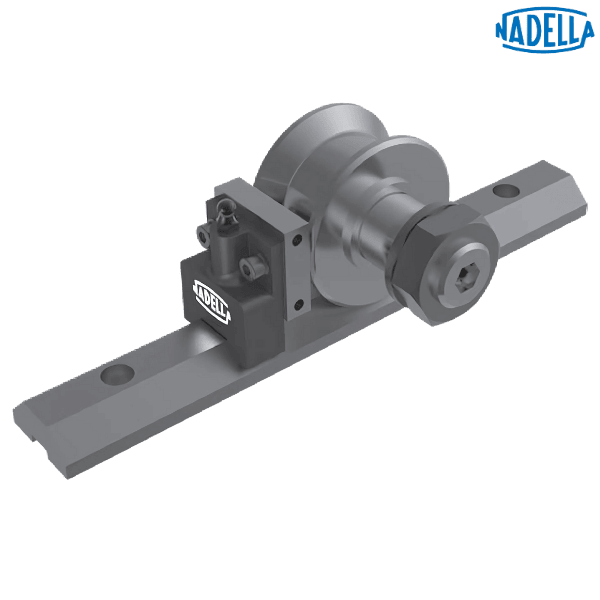

LUBU 65 NADELLA

Brand - NADELLA
Item Number - LUBU 65 NADELLA
Category - Heavy-Line Lubricator

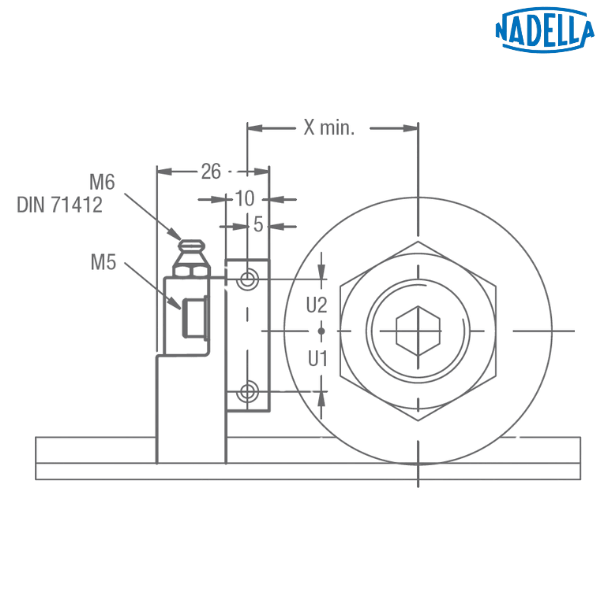

Principal Dimensions & Load Ratings (Metric):
Dimension (X) - 40 mm
Dimension (U1) - 14 mm
Dimension (U2) - 12 mm
Dimension (F) - 40 mm
Dimension (m) - 20.8 mm
Dimension (B) - 25.5 mm
Dimension (S*) - 10 mm
Dimension (C*) - 34 mm
Dimension (A*) - 20 mm
Dimension (E) - 38 mm
Dimension (V) - 18.5 mm
Dimension (P) - 16.5 mm
Weight - 0.065 kg
Suggested Combinations - RKU 65, RKUR 65, FKU 65

Description of Prefix:
LUBU - Lubricator for Heavy-Line system (guide rollers running on GU rails)

Other salient points to be noted:
• The lubricator is supplied with the felt already lubricated. The lubricant has a mineral oil base
• During the mounting fix the aluminium support to the rollers plate, adjust the height of the plastic part in order to put it in contact with the raceways and than block it in that position with the M5 screws

* The dimension of the plastic part refers to the centre of the regulation-slot. Allows a translation of +/- 3 mm

Optional Features:
• Felt without lubricant (D)
