LUBR 47 NADELLA

Brand - NADELLA
Item Number - LUBR 47 NADELLA
Category - Lubricator System for Circular Rails
To Couple with - FSR47M + FR40EU+ DISTFS47, FSR47M + FR52EU+ DISTFS47, FSR47M + RKY52+ DISTFS47

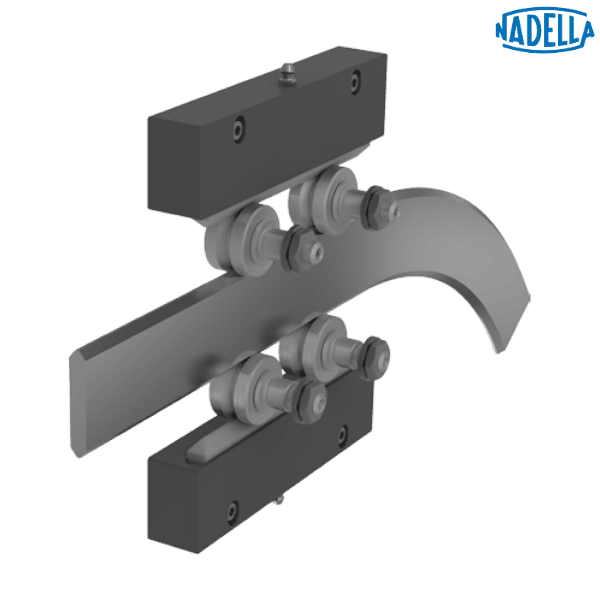

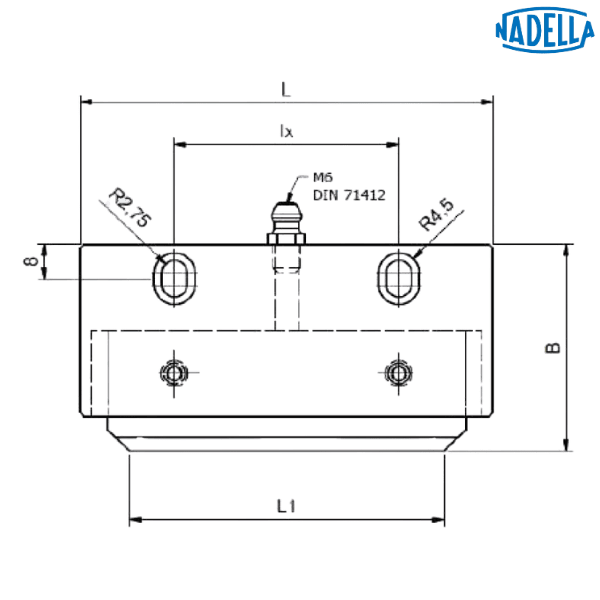

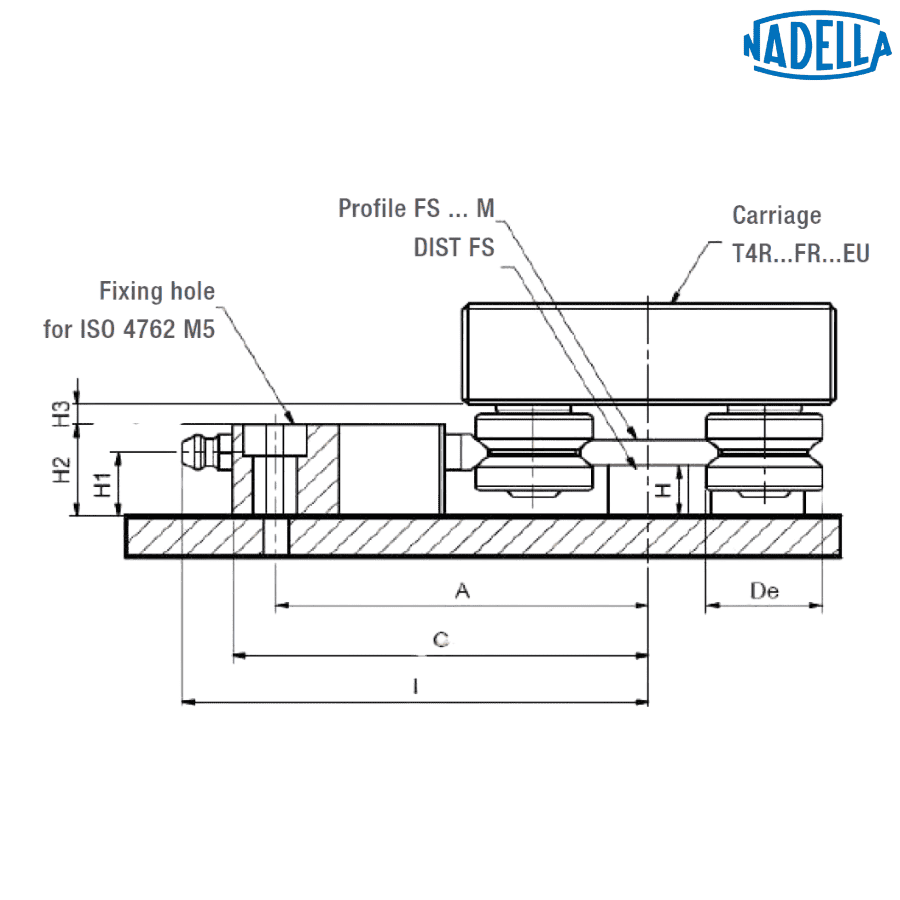

Principal Dimensions & Load Ratings (Metric):

To Couple with FSR47M + FR40EU+ DISTFS47
Dimension (De) - 40
Dimension (L) - 202 mm
Dimension (L1) - 170 mm
Dimension (A) - 110 mm
Dimension (B) - 48 mm
Dimension (C) - 117.8 mm
Dimension (I) - 127.3 mm
Dimension (Ix) - 120 mm
Dimension (H) - 20 mm
Dimension (H1) - 25 mm
Dimension (H2) - 33 mm
Dimension (H3) - 7.5 mm
Weight - 0.7 kg

To Couple with FSR47M + FR52EU+ DISTFS47
Dimension (De) - 52
Dimension (L) - 202 mm
Dimension (L1) - 170 mm
Dimension (A) - 119 mm
Dimension (B) - 48 mm
Dimension (C) - 126.8 mm
Dimension (I) - 136.3 mm
Dimension (Ix) - 120 mm
Dimension (H) - 20 mm
Dimension (H1) - 25 mm
Dimension (H2) - 33 mm
Dimension (H3) - 7.5 mm
Weight - 0.7 kg

To Couple with FSR47M + RKY52+ DISTFS47
Dimension (De) - 52
Dimension (L) - 202 mm
Dimension (L1) - 170 mm
Dimension (A) - 119 mm
Dimension (B) - 48 mm
Dimension (C) - 126.8 mm
Dimension (I) - 136.3 mm
Dimension (Ix) - 120 mm
Dimension (H) - 20 mm
Dimension (H1) - 25 mm
Dimension (H2) - 33 mm
Dimension (H3) - 7.5 mm
Weight - 0.7 kg

Other salient points to be noted:
• The lubricator is supplied with felt already soaked in oil. Lubricant based on mineral oil
• During assembly, use the aluminum body of the lubricant to adjust the distance between the felt and the rollers until they are in contact with each other. Then secure the body with the M5 screws

Optional Features:
• Felt without lubricant (D)

♦ ♦ Images are for representation purposes only
