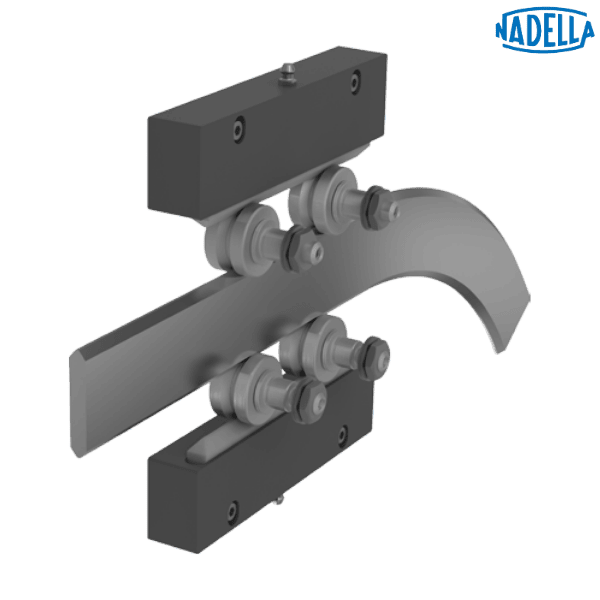

LUBR 35 NADELLA

Brand - NADELLA
Item Number - LUBR 35 NADELLA
Category - Lubricator System for Circular Rails
To Couple with - FSR35M + FR32EU+ DISTFS35, FSR35M + FR40EU+ DISTFS35

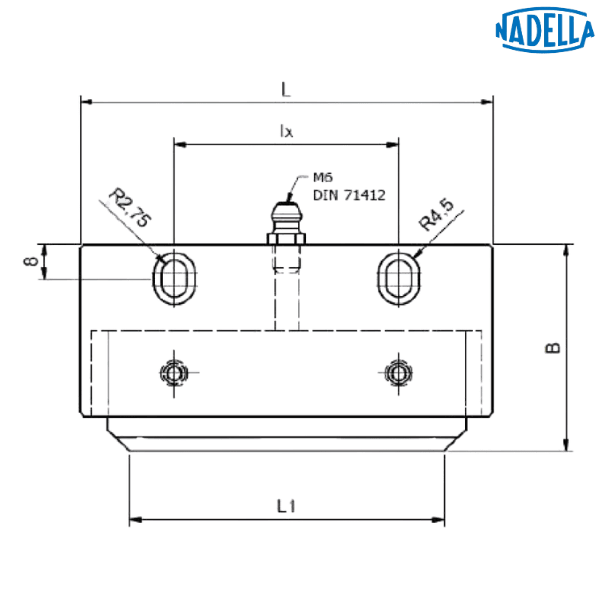

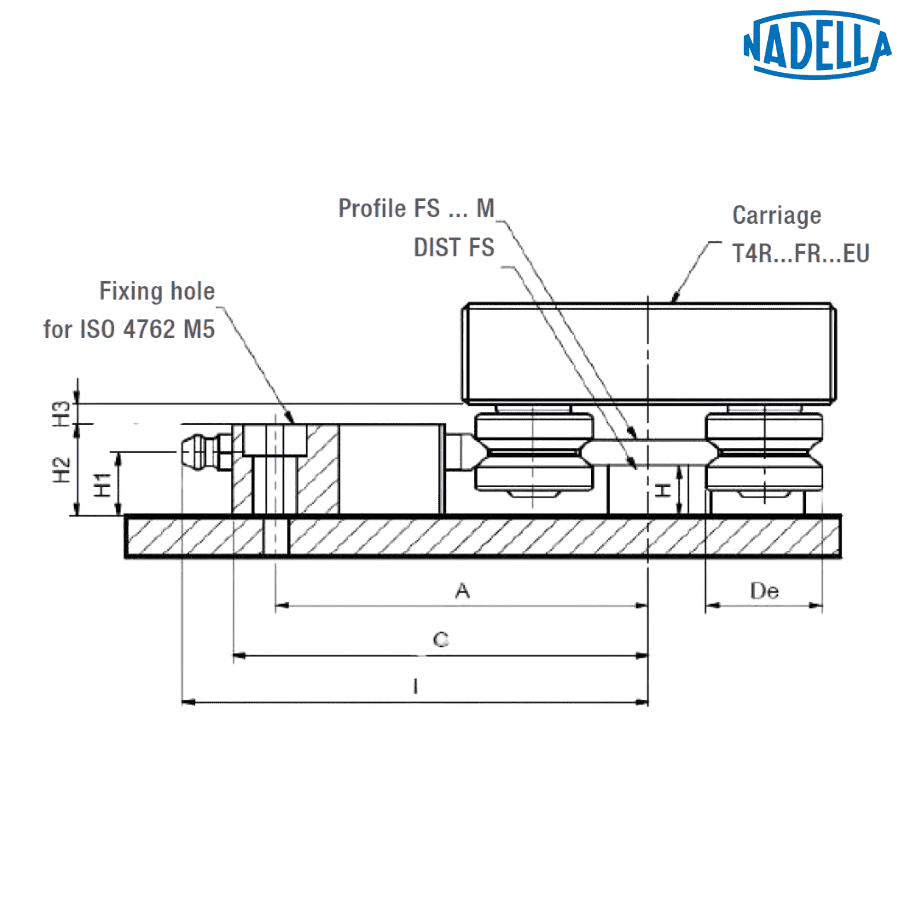

Principal Dimensions & Load Ratings (Metric):

To Couple with FSR35M + FR32EU+ DISTFS35
Dimension (De) - 32
Dimension (L) - 160 mm
Dimension (L1) - 130 mm
Dimension (A) - 88 mm
Dimension (B) - 48 mm
Dimension (C) - 96.5 mm
Dimension (I) - 106 mm
Dimension (Ix) - 100 mm
Dimension (H) - 15 mm
Dimension (H1) - 19 mm
Dimension (H2) - 26 mm
Dimension (H3) - 5.6 mm
Weight - 0.4 kg

To Couple with FSR35M + FR40EU+ DISTFS35
Dimension (De) - 40
Dimension (L) - 160 mm
Dimension (L1) - 130 mm
Dimension (A) - 94 mm
Dimension (B) - 48 mm
Dimension (C) - 102 mm
Dimension (I) - 111.6 mm
Dimension (Ix) - 100 mm
Dimension (H) - 15 mm
Dimension (H1) - 19 mm
Dimension (H2) - 26 mm
Dimension (H3) - 5.6 mm
Weight - 0.4 kg

Other salient points to be noted:
• The lubricator is supplied with felt already soaked in oil. Lubricant based on mineral oil
• During assembly, use the aluminum body of the lubricant to adjust the distance between the felt and the rollers until they are in contact with each other. Then secure the body with the M5 screws

Optional Features:
• Felt without lubricant (D)
