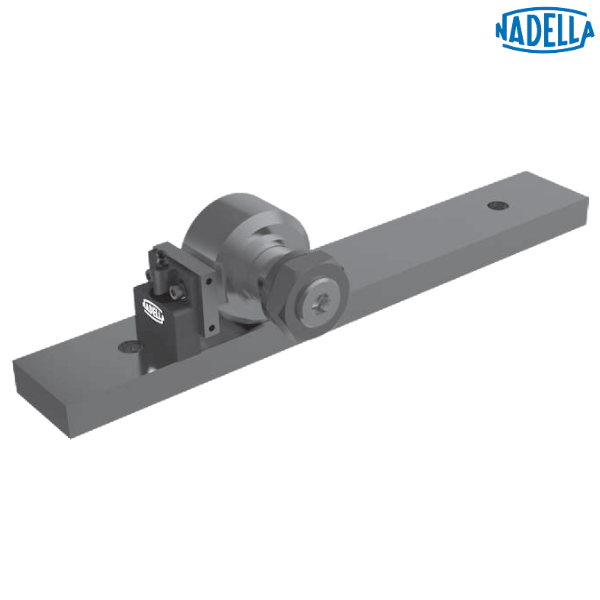

LUBP 62 NADELLA

Brand - NADELLA
Item Number - LUBP 62 NADELLA
Category - Heavy Line Lubricator

Principal Dimensions & Load Ratings (Metric):

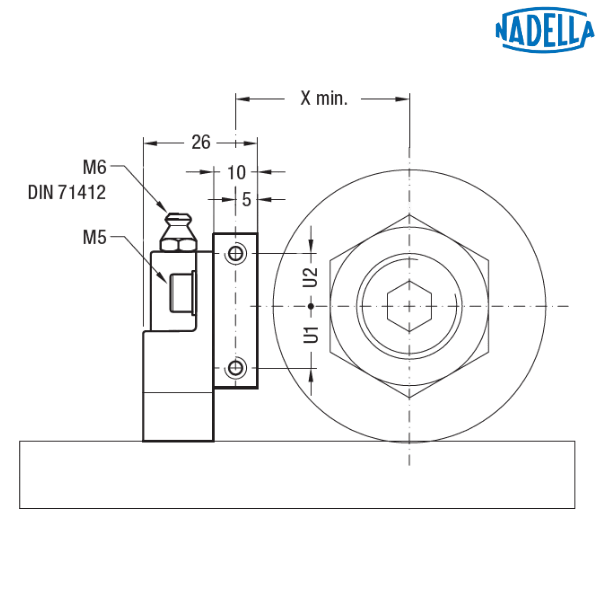

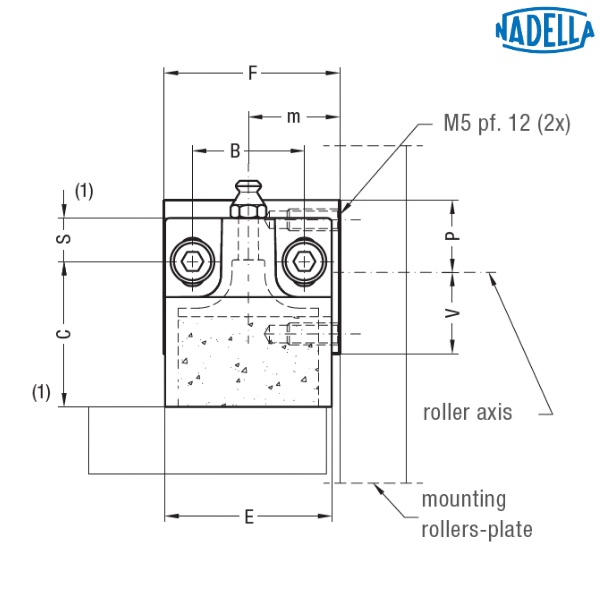

Dimension (X) - 38.5 mm
Dimension (U1) - 14 mm
Dimension (U2) - 12 mm
Dimension (F) - 40 mm
Dimension (m) - 20.8 mm
Dimension (B) - 25.5 mm
Dimension (S*) - 10 mm
Dimension (C*) - 32.5 mm
Dimension (E) - 38 mm
Dimension (V) - 18.5 mm
Dimension (P) - 16.5 mm
Weight - 0.065 kg
Suggested Combinations - PK 62 C, PKR 62 C, FK 62 C

Description of Prefix:
LUBP - Lubricator for Heavy-Line system (guide rollers running on GP rails)

Other salient points to be noted:
• The lubricator is supplied with the felt already lubricated. The lubricant has a mineral oil base
• During the mounting fix the aluminium support to the rollers plate, adjust the height of the plastic part in order to put it in contact with the raceways and then block it in that position with the M5 screws

Optional Features:
• Felt without lubricant (D)

* The dimension of the plastic part refers to the centre of the regulation slot. The regulation slot allows a translation of +/- 3 mm
