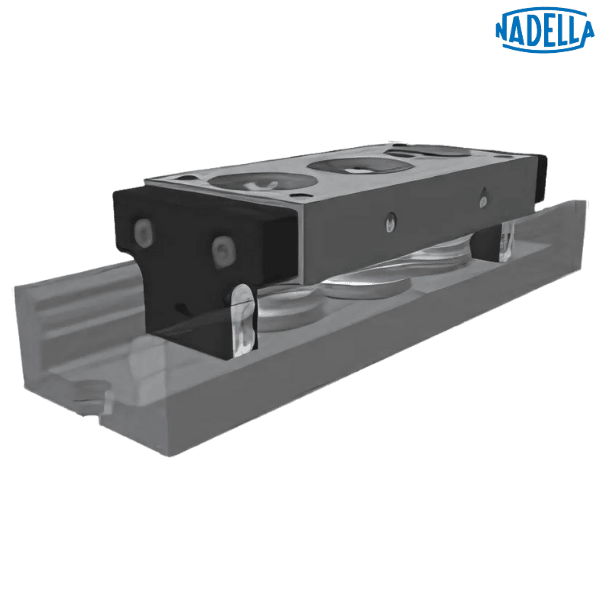

LUBM 065 CD / CS NADELLA

Brand - NADELLA
Item Number - LUBM 065 CD / CS NADELLA
Category - Lubricator

Principal Dimensions & Load Ratings (Metric):
Dimension (A) - 20.5 mm
Dimension (B) - 30 mm
Dimension (U) - 15 mm
Dimension (E) - 63 mm
Dimension (T) - 30 mm
Dimension (H) - 13 mm
Dimension (C) - 44.5 mm
Dimension (G*) - M4
Dimension (S) - 9 mm
Dimension for C3 RCL (L) - 133 mm
Dimension for C4 RCL (L) - 170 mm
Recommended Pairings - LM 65

Description of Prefix:
LUBM - Lubricator for U-Line system (carriages running in LM rails)

Other salient points to be noted:
* One lubricator for packaging. Countersunk head screws for the mounting are already in the packaging

• The lubricator is supplied with the felt already lubricated. The lubricant has a mineral oil base
• The lubricator can be mounted on carriages RCL, RAL and RYL

Optional Features:
• Felt without lubricant (D)

♦ ♦ Images are for representation purposes only
