LUBC 35.16 NADELLA

Brand - NADELLA
Item Number - LUBC 35.16 NADELLA
Category - Lubricator

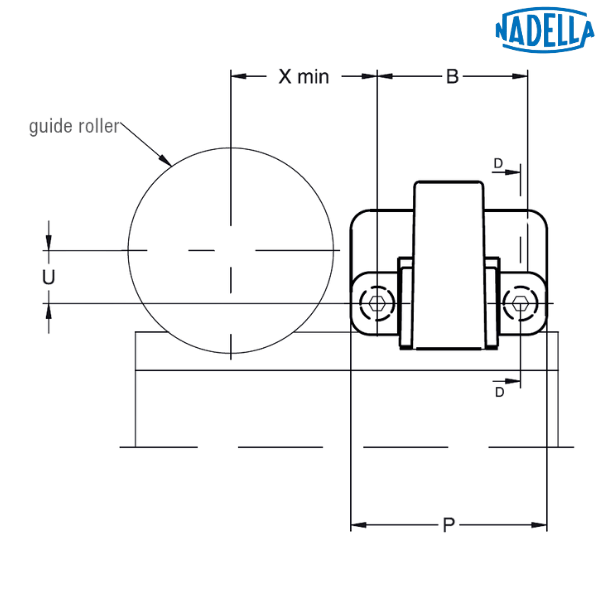

Principal Dimensions & Load Ratings (Metric):
Dimension (X) - 23 mm
Dimension (U) - 9.5 mm
Dimension (B) - 25 mm
Dimension (F) - 22 mm
Dimension (m) - 12 mm
Dimension (dB) - 16 mm
Dimension (A) - 5.5 mm
Dimension (C) - 32 mm
Dimension (P) - 32.5 mm
Dimension (Vf)* - M3 x 12
Dimension (Vr)** - M4
Weight - 0.015 kg
Suggested Combinations - PFV 35.16

Description of Prefix:

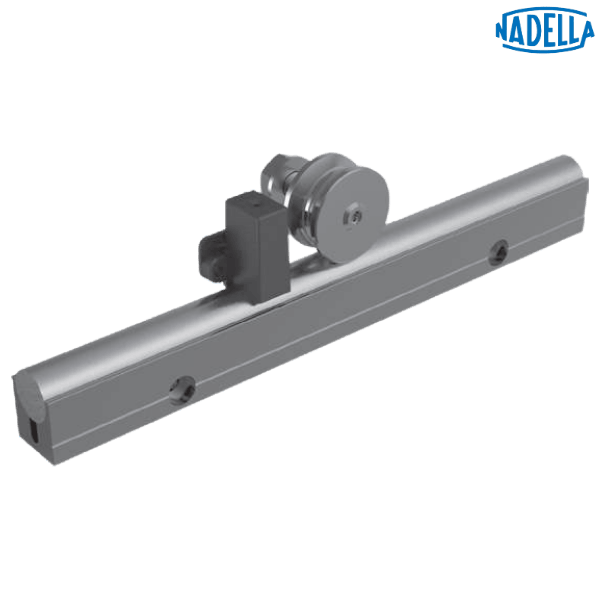

LUBC - Lubricator for Base-Line system (guide rollers running on C and DC rails)

Other salient points to be noted:

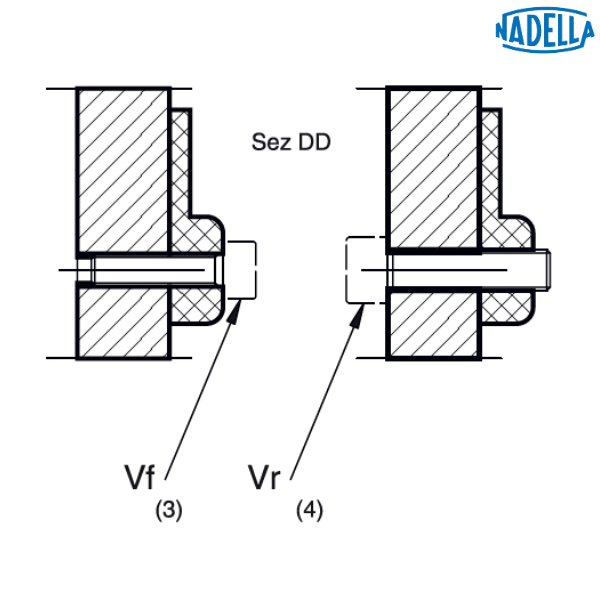

* The screws Vf for the frontal mounting are included in the packaging. Arrange two thread holes for dimension Vf in the mounting rollers plate
** The screw for the mounting on the nut side of the roller are not included in the packaging. Arrange on the mounting rollers plate the holes in order to insert the screws Vr
• The lubricator is supplied with the felt already lubricated. The lubricant has a mineral oil base
• At the mounting, insert the screws inside the rollers plate, without tightening them, adjust the height of the plastic part in order to put it in contact with the raceways and then block it

Optional Features:
• Felt without lubricant (D)

♦ ♦ Images are for representation purposes only
