Description
Brand - RBC
Item Number - LTD4466 RBC
Category - Fiberglide® Composite Thrust Washer

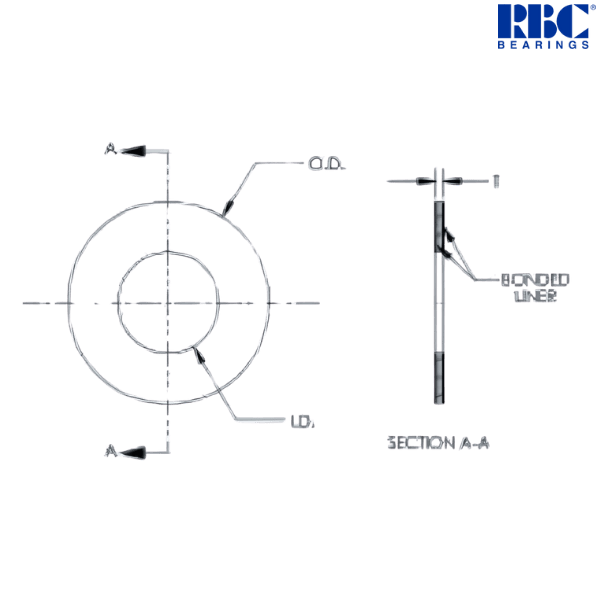

Principal Dimensions & Load Ratings (Imperial) :
Maximum Shaft Diameter - 2.75 inch
Inner Diameter - 2.812 (+0.020 to - 0.000) inch
Outer Diameter - 4.125 (+0.000 to - 0.020) inch
T - 0.094 (±0.002) inch
Maximum Static Load - 71534 lbf
Description of Prefix : LTD
• Thrust Bearings
• Composite PTFE
• Double-Sided Wear Surface
Other salient points to be noted :
• Provides high load capacity and low friction for use where elimination of lubrication is desirable.
• Completely non-metallic with no possibility of corrosion.
• Maximum compressive strength is 10,000 psi, with operating temperature range of -250°F to 200°F.

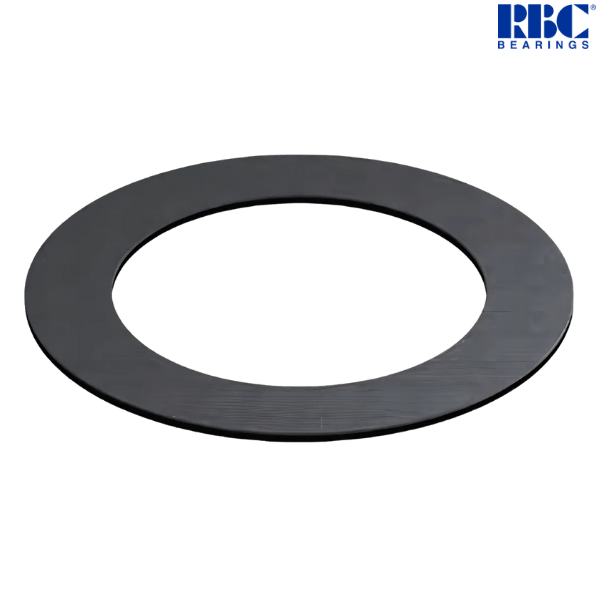

♦ ♦ Images are for representation purposes only
Item Number - LTD4466 RBC
Category - Fiberglide® Composite Thrust Washer
Principal Dimensions & Load Ratings (Imperial) :
Maximum Shaft Diameter - 2.75 inch
Inner Diameter - 2.812 (+0.020 to - 0.000) inch
Outer Diameter - 4.125 (+0.000 to - 0.020) inch
T - 0.094 (±0.002) inch
Maximum Static Load - 71534 lbf
Description of Prefix : LTD
• Thrust Bearings
• Composite PTFE
• Double-Sided Wear Surface
Other salient points to be noted :
• Provides high load capacity and low friction for use where elimination of lubrication is desirable.
• Completely non-metallic with no possibility of corrosion.
• Maximum compressive strength is 10,000 psi, with operating temperature range of -250°F to 200°F.
♦ ♦ Images are for representation purposes only
