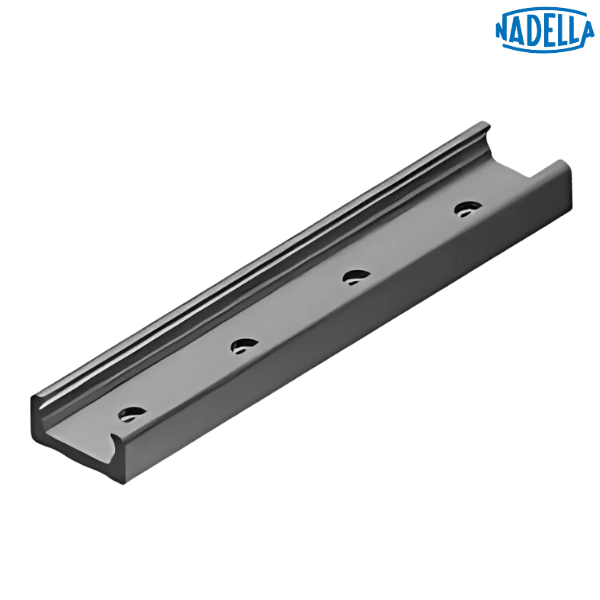

LS 63 NADELLA

Brand - NADELLA
Item Number - LS 63 NADELLA
Category - Steel Guide Rails Hardened with Internal Raceways

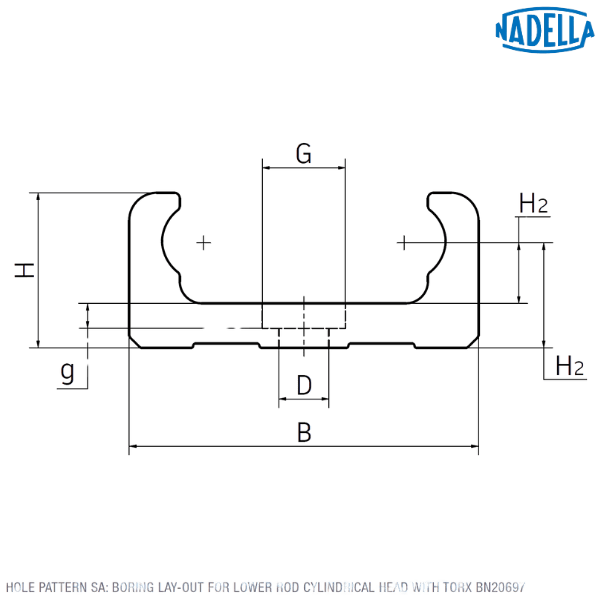

Principal Dimensions & Load Ratings (Metric):
Dimension (B) - 63 mm
Dimension (H) - 28 mm
Dimension (H1) - 19.25 mm
Dimension (H2) - 11.25 mm
Dimension (D) - 9 mm
Dimension (G) - 15 mm
Dimension (g) - 4.5 mm

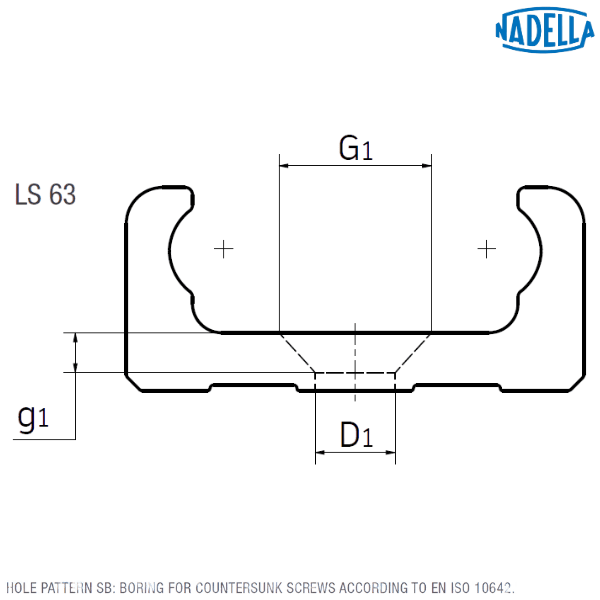

Dimension (D1) - 11 mm
Dimension (G1) - 21 mm
Dimension (g1) - 5.5 mm

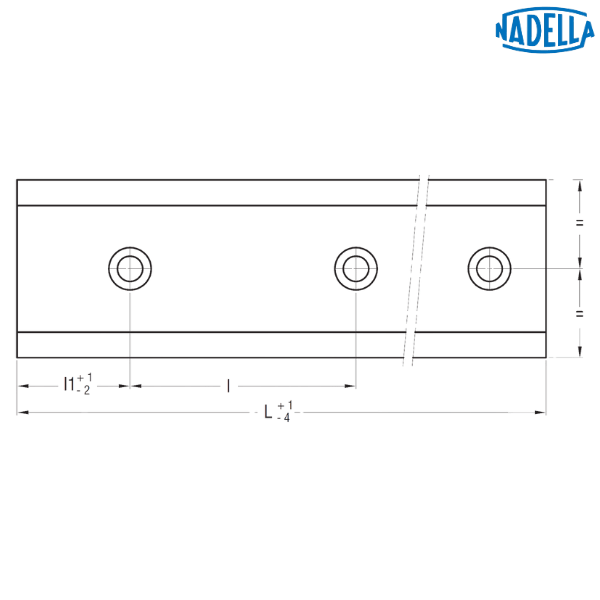

Dimension (I) - 80 mm
Dimension (I1) - 40 mm
Maximum Dimension (L*) - 4000 mm
Moment of Inertia (Jx) - 4.5 cm⁴
Moment of Inertia (Jy) - 38.9 cm⁴
Weight - 6.22 kg/m

Description of Prefix:
LS - Rails totally in steel with internal hardened raceways for C-Line system

Other salient points to be noted:
* Longer rails will be fitted with finish-machined joints

Rail Design Standard:
• Drawn, induction hardened raceways
• Surface zinc-plated (MT ... GZ)

Surface Options:
• Chemically nickel-plated (NW)
• Uncoated, blasted

Fixing Holes:
• For Hole pattern according to catalogue, Suffix will be SA or SB, e.g. LS 63 MT 2600 SAGZ, NT 28 MT 2600 SBGZ
• For Hole pattern according to drawing, Suffix will be NZ, e.g. LS 28 MT 2600 NZGZ
• For Without holes, Suffix will be NF, e.g. LS 28 MT 2600 NFGZ

Standard Designation Examples:
• LS 28 MT 760 GZ
• LS 28 MT 1050 GZ
• LS 28 MT 2600 GZ
• LS 28 MT 3450 GZ
