Description
Brand - IKO
Item Number - LRT 859530 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 85

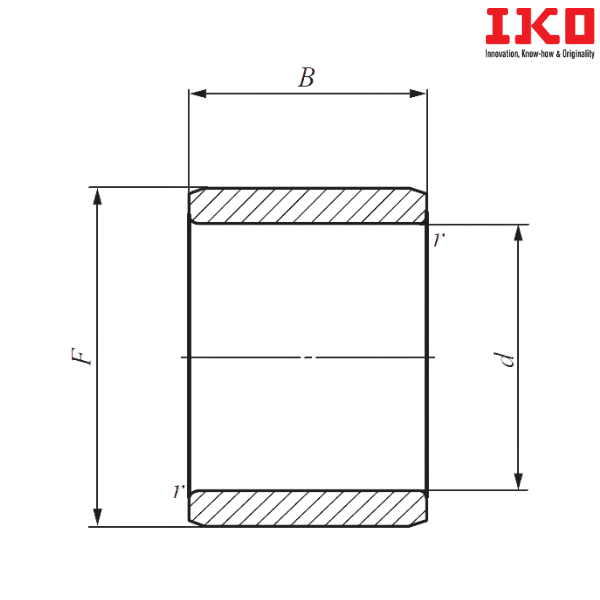

Boundary Dimension (d) mm - 85
Boundary Dimension (F) mm - 95
Boundary Dimension (B) mm - 30
Minimum Boundary Dimension (rs) mm - 1.5
Minimum Standard Mounting Dimension (da) mm - 93
Maximum Standard Mounting Dimension (da) mm - 93.5
Weight (kg) - 0.33
Probable Assembled Bearings - RNAF 9511530

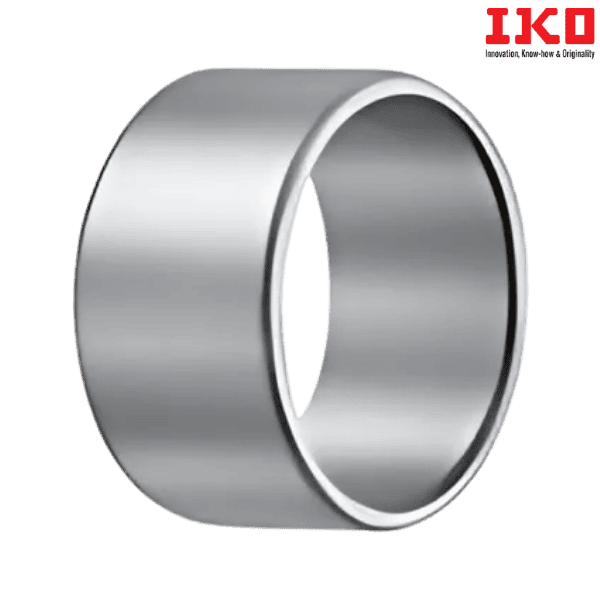

** Images are for representation purposes only
