Description
Brand - IKO
Item Number - LRT 81011 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 8

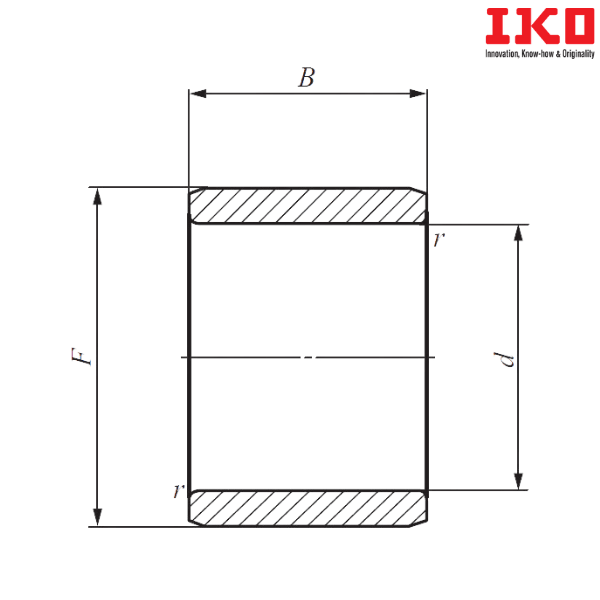

Boundary Dimension (d) mm - 8
Boundary Dimension (F) mm - 10
Boundary Dimension (B) mm - 11
Minimum Boundary Dimension (rs) mm - 0.2
Minimum Standard Mounting Dimension (da) mm - 9.6
Maximum Standard Mounting Dimension (da) mm - 9.9
Weight (kg) - 0.0024
Probable Assembled Bearings - RNA 498

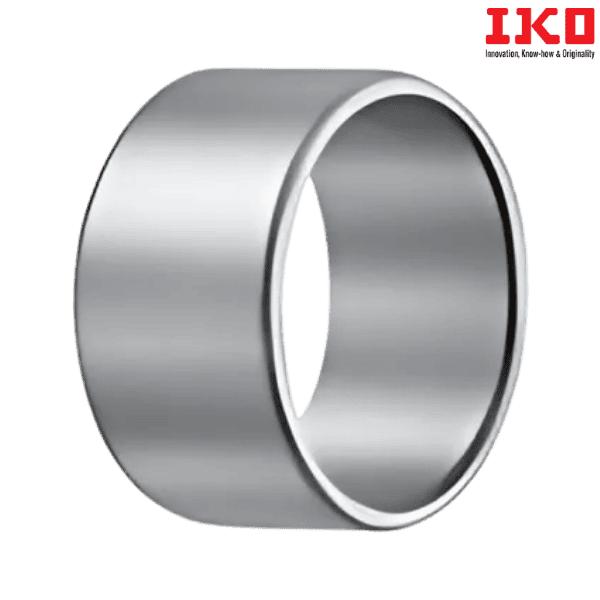

** Images are for representation purposes only
