Description
Brand - IKO
Item Number - LRT 71016 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 7
Boundary Dimension (d) mm - 7
Boundary Dimension (F) mm - 10
Boundary Dimension (B) mm - 16
Minimum Boundary Dimension (rs) mm - 0.2

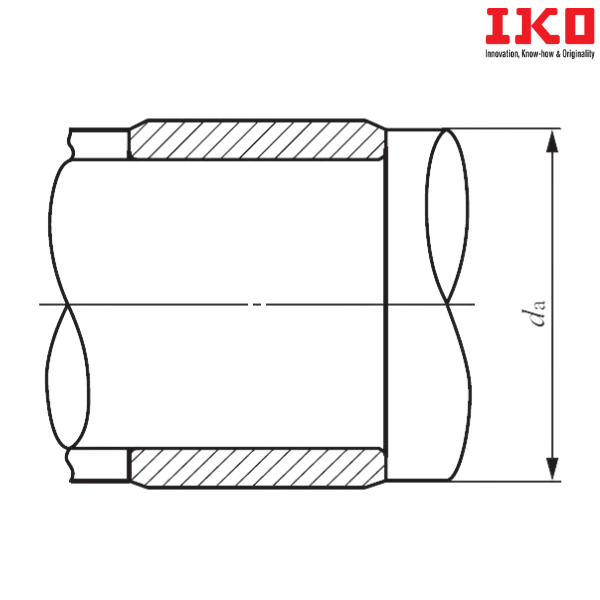

Minimum Standard Mounting Dimension (da) mm - 8.6
Maximum Standard Mounting Dimension (da) mm - 9.7
Weight (kg) - 0.0049
Probable Assembled Bearings - TAF 101716, NAX 1023
** Images are for representation purposes only
