Description
Brand - IKO
Item Number - LRT 708030-1 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 70

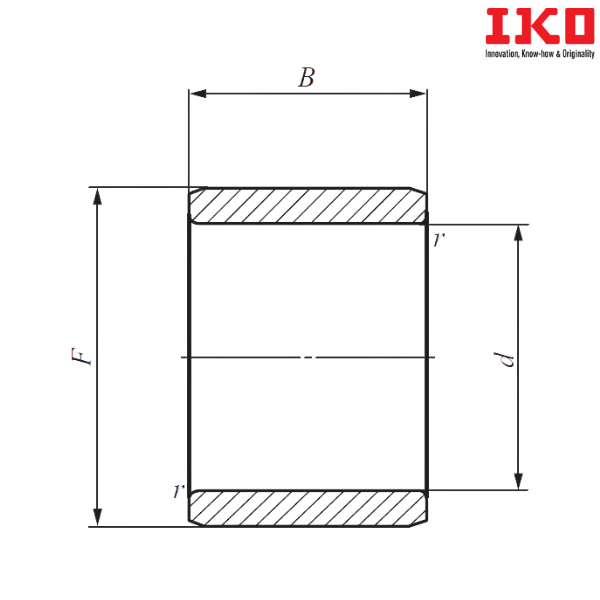

Boundary Dimension (d) mm - 70
Boundary Dimension (F) mm - 80
Boundary Dimension (B) mm - 30
Minimum Boundary Dimension (rs) mm - 1.5
Minimum Standard Mounting Dimension (da) mm - 78
Maximum Standard Mounting Dimension (da) mm - 78.5
Weight (kg) - 0.275
Probable Assembled Bearings - RNAF 8010030

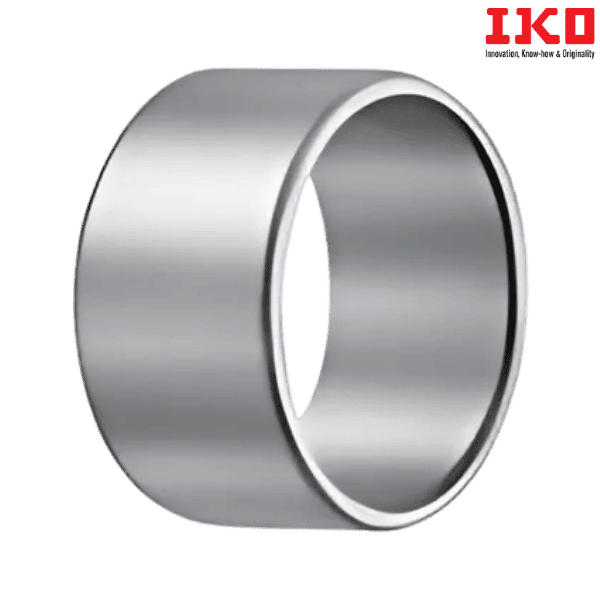

** Images are for representation purposes only
