Description
Brand - IKO
Item Number - LRT 6912 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 6

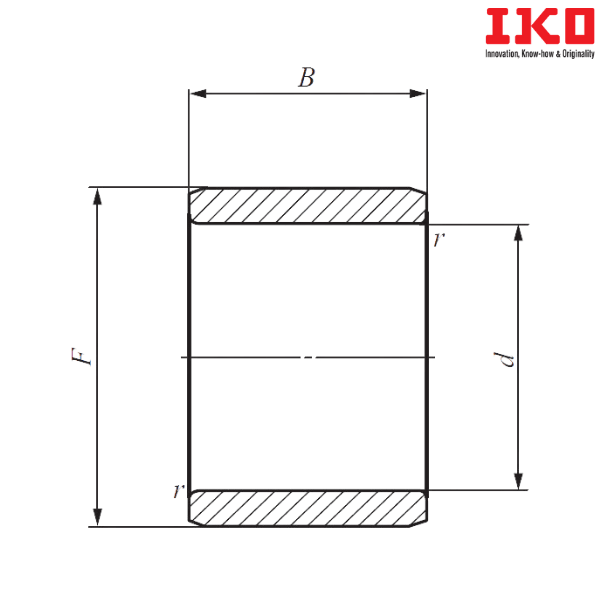

Boundary Dimension (d) mm - 6
Boundary Dimension (F) mm - 9
Boundary Dimension (B) mm - 12
Minimum Boundary Dimension (rs) mm - 0.2
Minimum Standard Mounting Dimension (da) mm - 7.6
Maximum Standard Mounting Dimension (da) mm - 8.7
Weight (kg) - 0.0032
Probable Assembled Bearings - TAF 91612

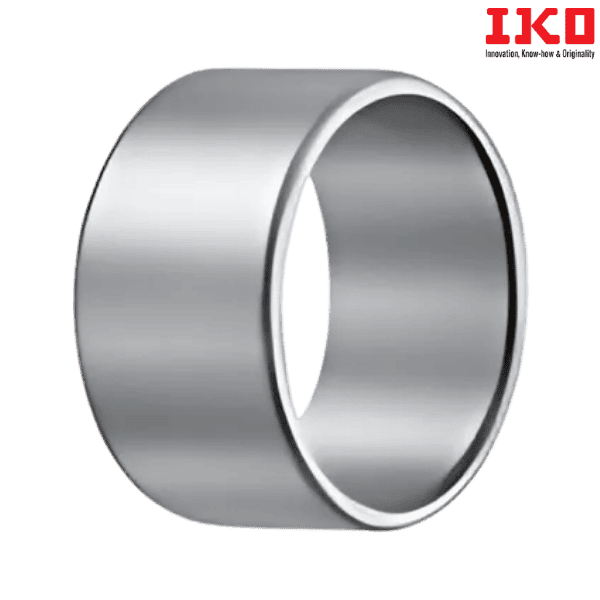

** Images are for representation purposes only
