Description
Brand - IKO
Item Number - LRT 6810 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 6

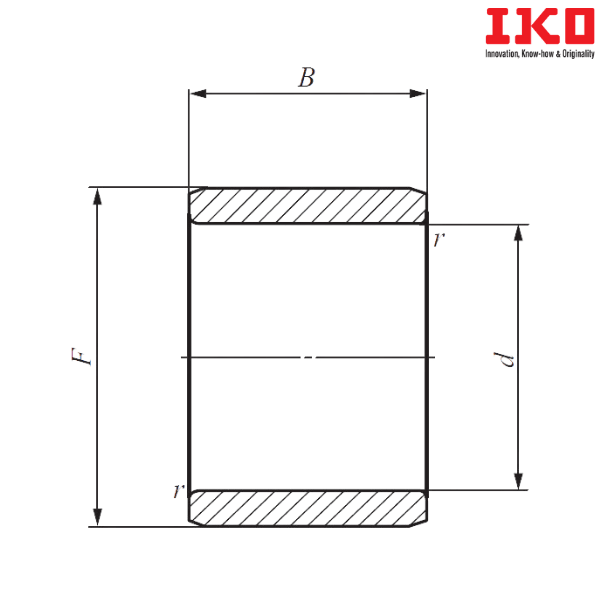

Boundary Dimension (d) mm - 6
Boundary Dimension (F) mm - 8
Boundary Dimension (B) mm - 10
Minimum Boundary Dimension (rs) mm - 0.15
Minimum Standard Mounting Dimension (da) mm - 7.2
Maximum Standard Mounting Dimension (da) mm - 7.7
Weight (kg) - 0.0017
Probable Assembled Bearings - RNA 496

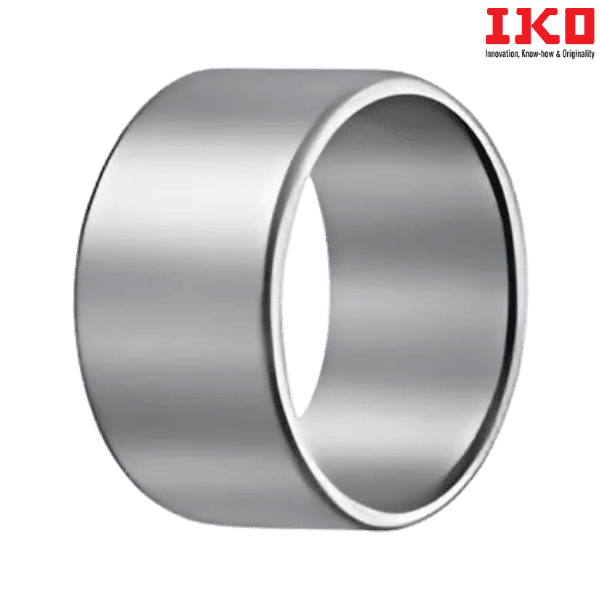

** Images are for representation purposes only
