Description
Brand - IKO
Item Number - LRT 657530 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 65

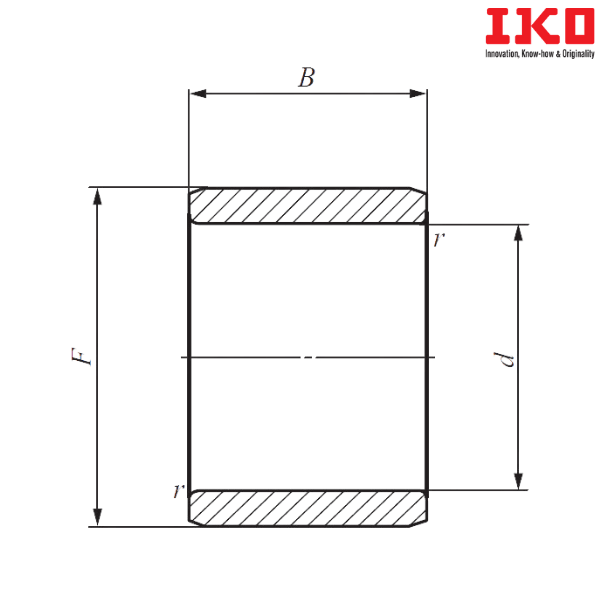

Boundary Dimension (d) mm - 65
Boundary Dimension (F) mm - 75
Boundary Dimension (B) mm - 30
Minimum Boundary Dimension (rs) mm - 1.5
Minimum Standard Mounting Dimension (da) mm - 73
Maximum Standard Mounting Dimension (da) mm - 73.5
Weight (kg) - 0.26
Probable Assembled Bearings - RNAF 759530

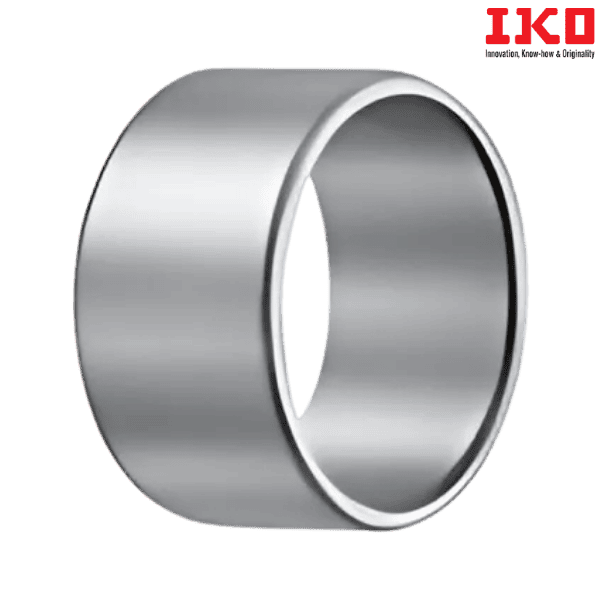

** Images are for representation purposes only
