Description
Brand - IKO
Item Number - LRT 5816 IKO
Category - Inner Ring for General Usage
Shaft Diameter (mm) - 5

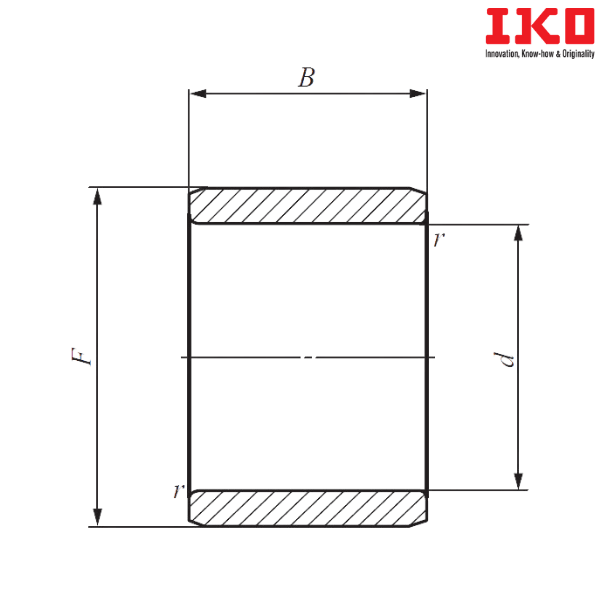

Boundary Dimension (d) mm - 5
Boundary Dimension (F) mm - 8
Boundary Dimension (B) mm - 16
Minimum Boundary Dimension (rs) mm - 0.2
Minimum Standard Mounting Dimension (da) mm - 6.6
Maximum Standard Mounting Dimension (da) mm - 7.7
Weight (kg) - 0.0038
Probable Assembled Bearings - TAF 81516

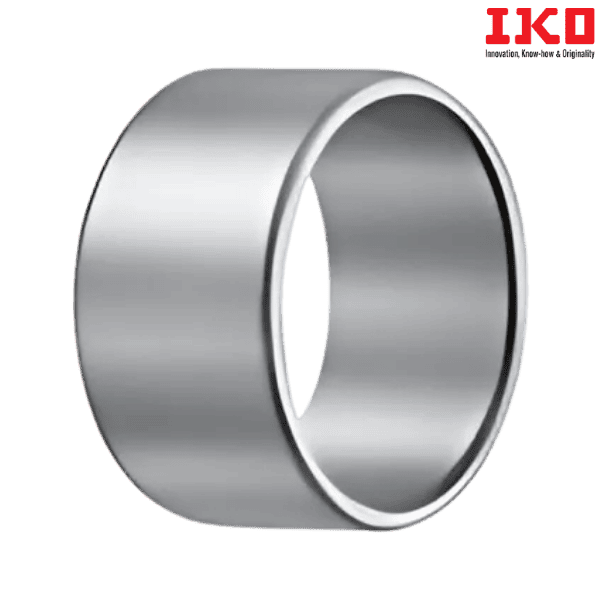

** Images are for representation purposes only
